Steering: Adjustments

CHECK AND ADJUST
1. Measure the clearance between tire wall and radius arm at full lock. This must be 20 mm (0.787 in).

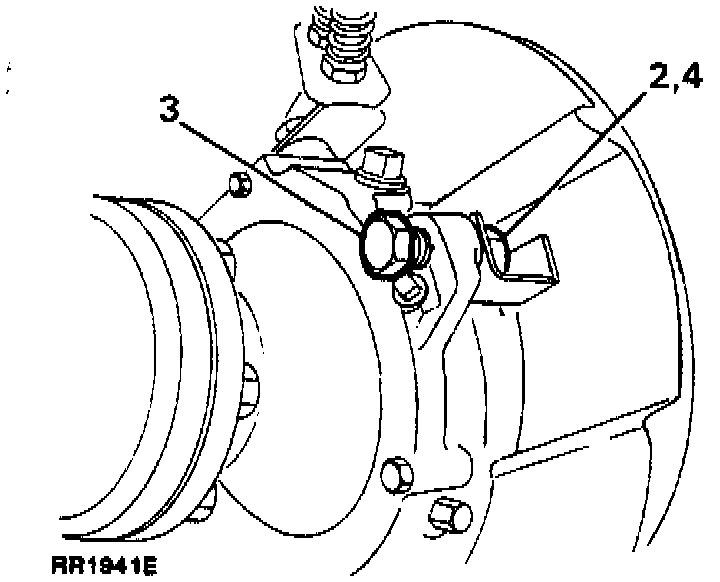

Steering Angle Stop:

2. Loosen the stop bolt locknut.
3. Turn the stop bolt in or out as required.
4. Tighten the locknut.
5. Check the clearance between tire wall and radius arm on each lock.
