Front

REMOVE
1. Loosen the road wheel retaining nuts.
2. Raise the front of the vehicle using a suitable hydraulic floor jack. Support chassis on suitable stands and remove the wheel, (remove both front wheels only if removing both radius arms).
3. Support the front axle weight using the hydraulic floor jack.

Radius Arm Fasteners:

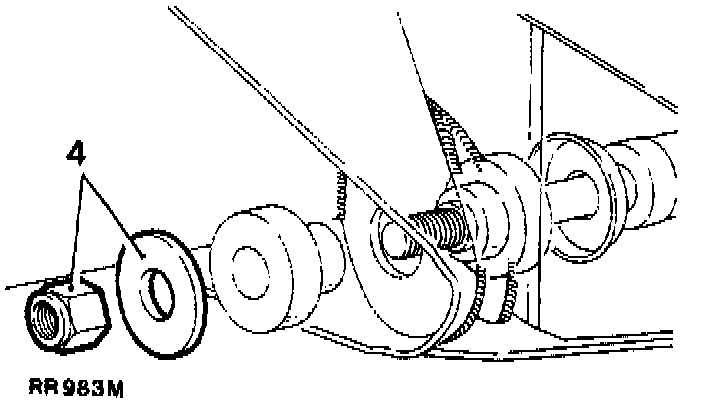

4. Remove the fasteners - radius arm to chassis side member.

Track Rod Ball Joint:

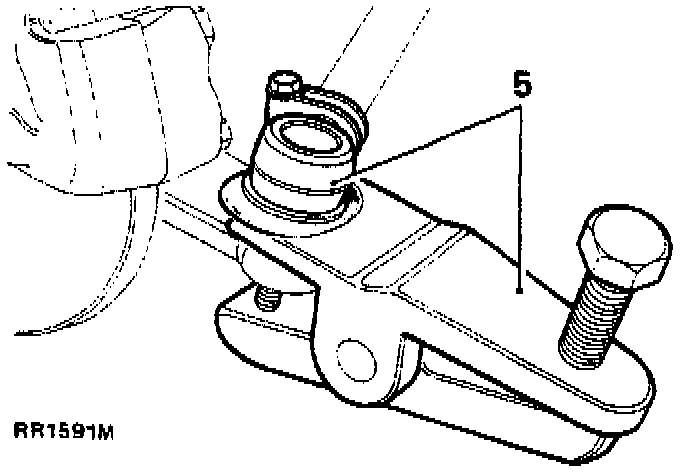

5. Disconnect the track rod at the ball joint, using a suitable extractor.

Radius Arm Fasteners:

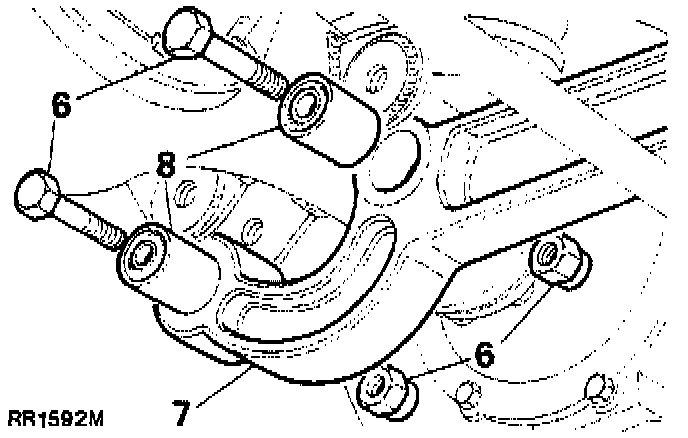

6. Remove the fasteners, radius arm to axle.
7. Lower the radius arm front end to clear the axle and remove it from the vehicle.

REFIT
1. Reverse 1 to 7.
2. Tighten the radius arm fasteners to 190 Nm (140 ft lb).
