Locations
>>
Splice Locations
Splice Locations
Connector, Ground, And Splice Locations On Vehicle:

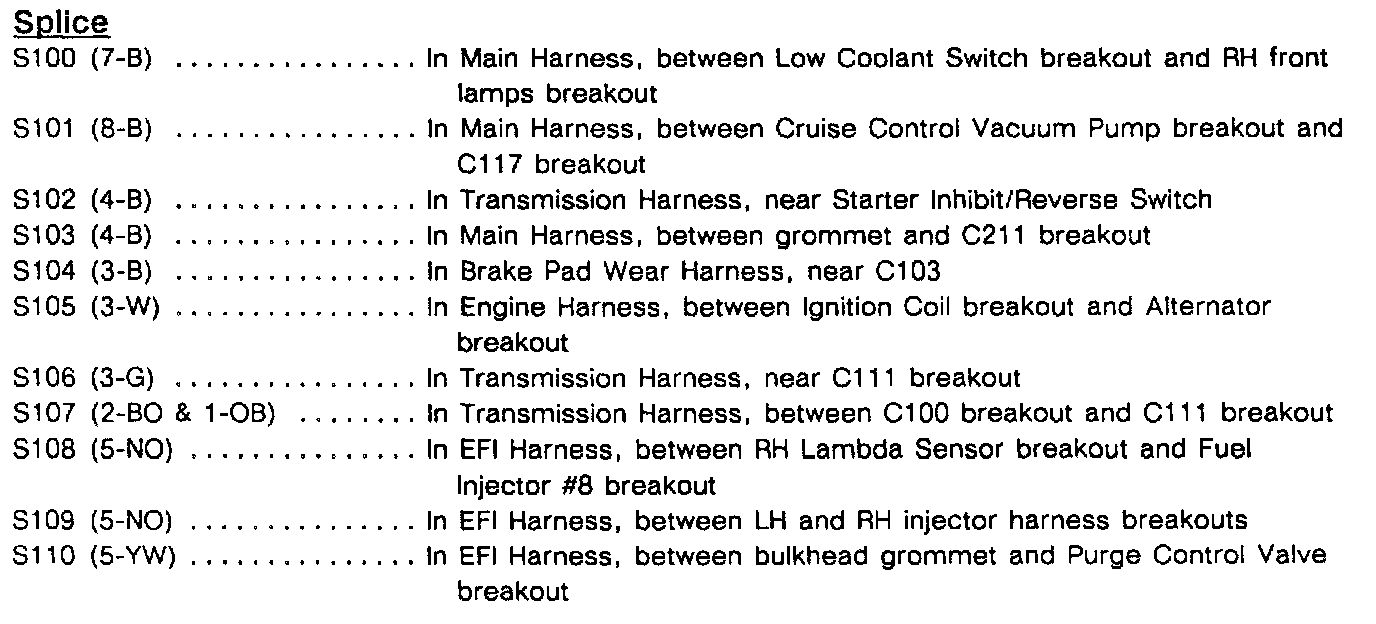

S100 - S110:

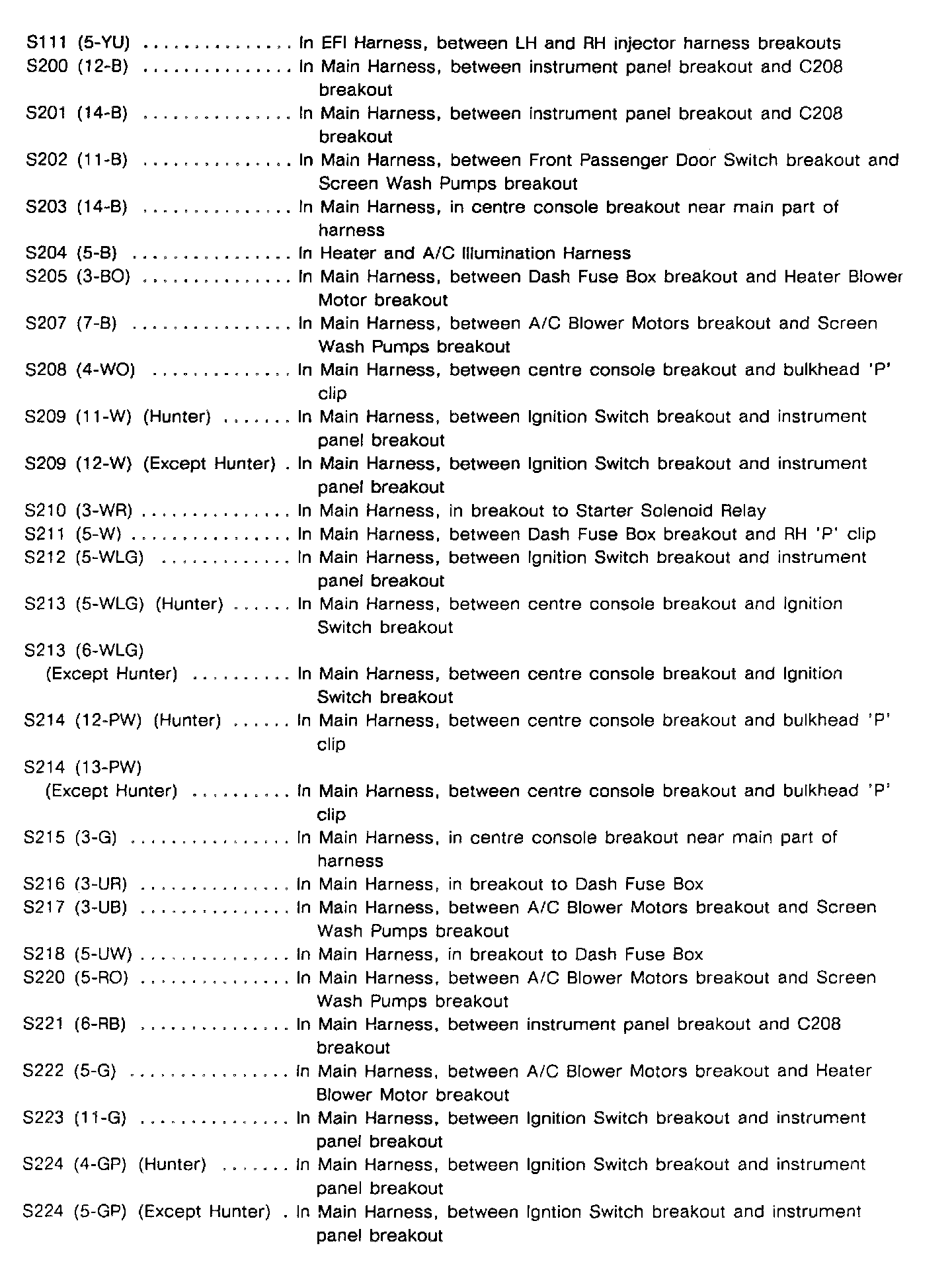

S111 - S224:
S225 - S258:

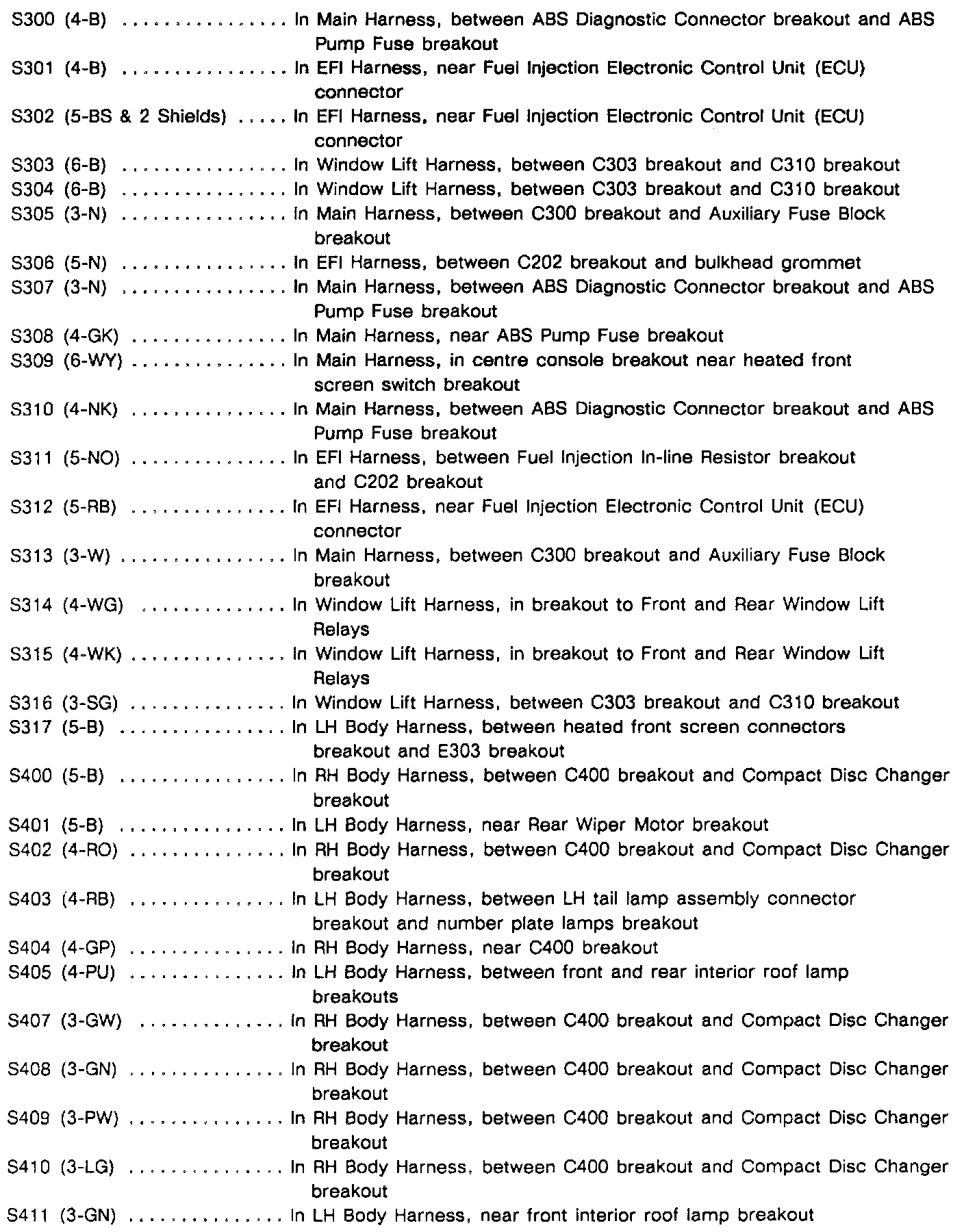

S300 - S411:

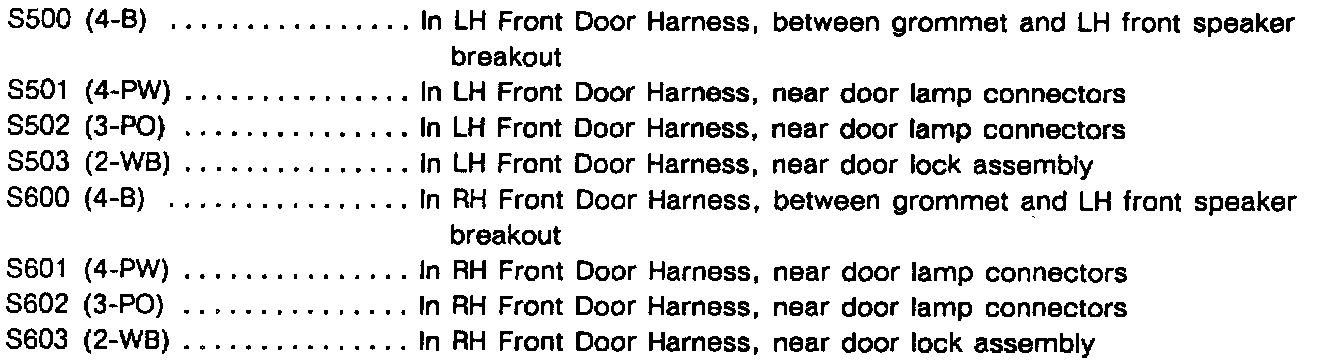

S500 - S603:
