Windshield Washer Pump: Service and Repair

Power Wash Pump

Service Repair No - 84.20.21





Remove

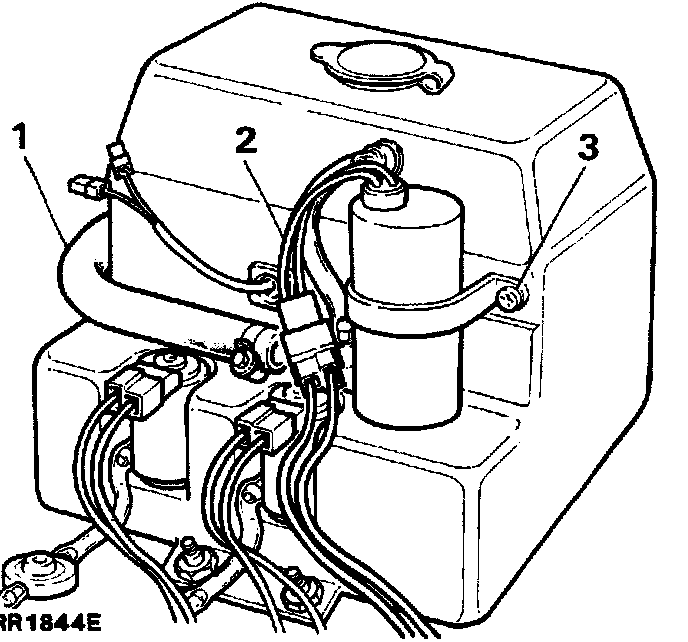

1. Disconnect hose from power wash pump.
2. Disconnect electrical leads from pump.
3. Remove two screws and withdraw power wash pump.

Refit
1. Reverse procedure to install.
