Front

Front Stabilizer Bar

Sevice Repair No - 60.10.01

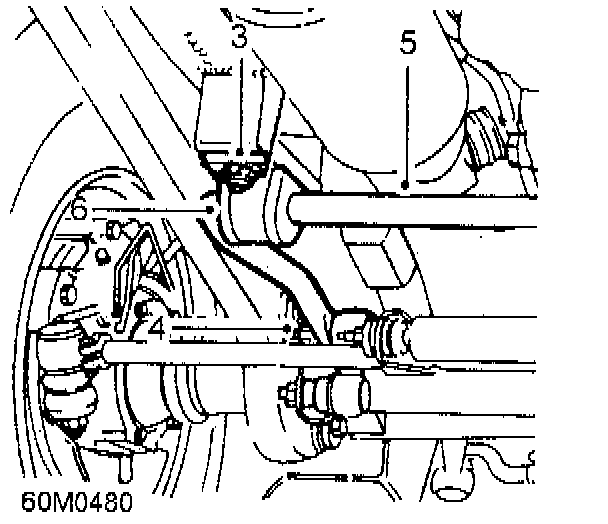

Removal

1. Mark for reassembly position of rubber bushes on stabilizer bar.
2. Remove 4 nuts, bolts, washers securing both stabilizer bar bush straps to chassis mounting brackets.
3. Reove nuts, bolts, washers and rubber bushes securing stabilizer bar to both links.
4. Remove stabilizer bar.






Installation

1. Position bushes on stabilizer bar. Ensure split points towards axle on RH bush and away from axle on LH bush.
2. Install stabilizer bar using two straps. To ensure correct fit angled sides of bar should point down. Loosely install the bolts, washers and nyloc nuts.
3. Install bolt, washer and rubber bushes. Using new nuts fit stabilizer bar to links and tighten to 68 Nm (50 ft. lbs.)
4. Tighten nuts securing straps to 30 Nm (22 ft. lbs.).
