Upper Arm

Upper Arm

Service Repair No - 64.35.60

Removal

1. Support rear of chassis on stands, allow axle to hang freely.

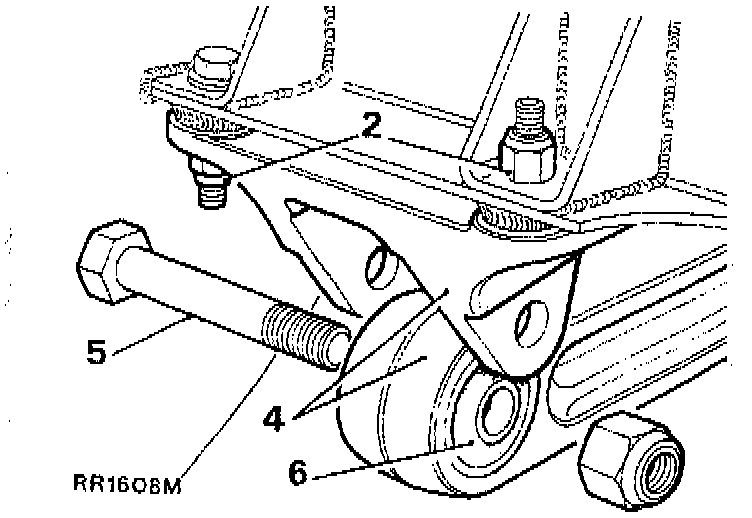

2. Remove fixings securing upper arm bracket to frame.

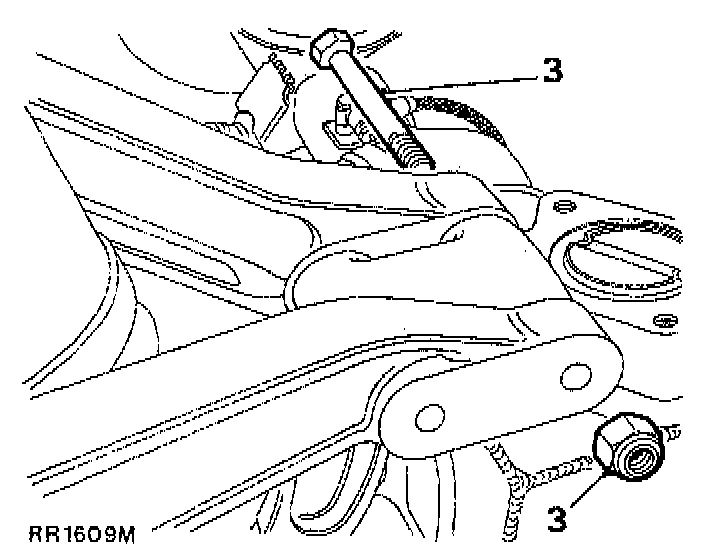

3. Remove fixings securing upper arms to pivot bracket.





4. Remove upper arm complete with frame bracket.
5. Remove bolt.
6. Separate upper arm from bracket.





7. Renew bush
8. Press out rubber bushes.

CAUTION: Apply pressre to outer edge of bush and not rubber inner.

9. Fit bush centrally in housing.


Installation

NOTE: Do not fully tighten fasteners until all components are in position.

1. Secure upper arm to frame bracket.
2. Fit upper arm to pivot bracket.
3. Fit frame bracket to chassis mounting.
4. Fully tighten fixings to 176 Nm (130 ft. lbs.)
