Passenger Assist Handle: Service and Repair

Rear Grab Handle - Hard Top

Remove

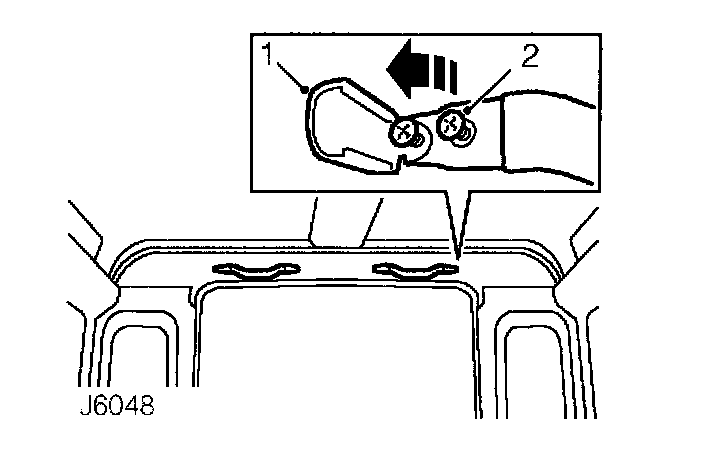

1. Carefully prise top and bottom edges of finisher caps from grab handle and then hinge outwards to gain access to fixing screws.
2. Remove 4 fixing screws and detach grab handle from rear end trim panel.


Refit
3. Position grab handle on rear end trim panel and secure with 4 fixing screws.
4. Press finisher caps over screws.
