Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1995
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C379 - C384
C379 - C384

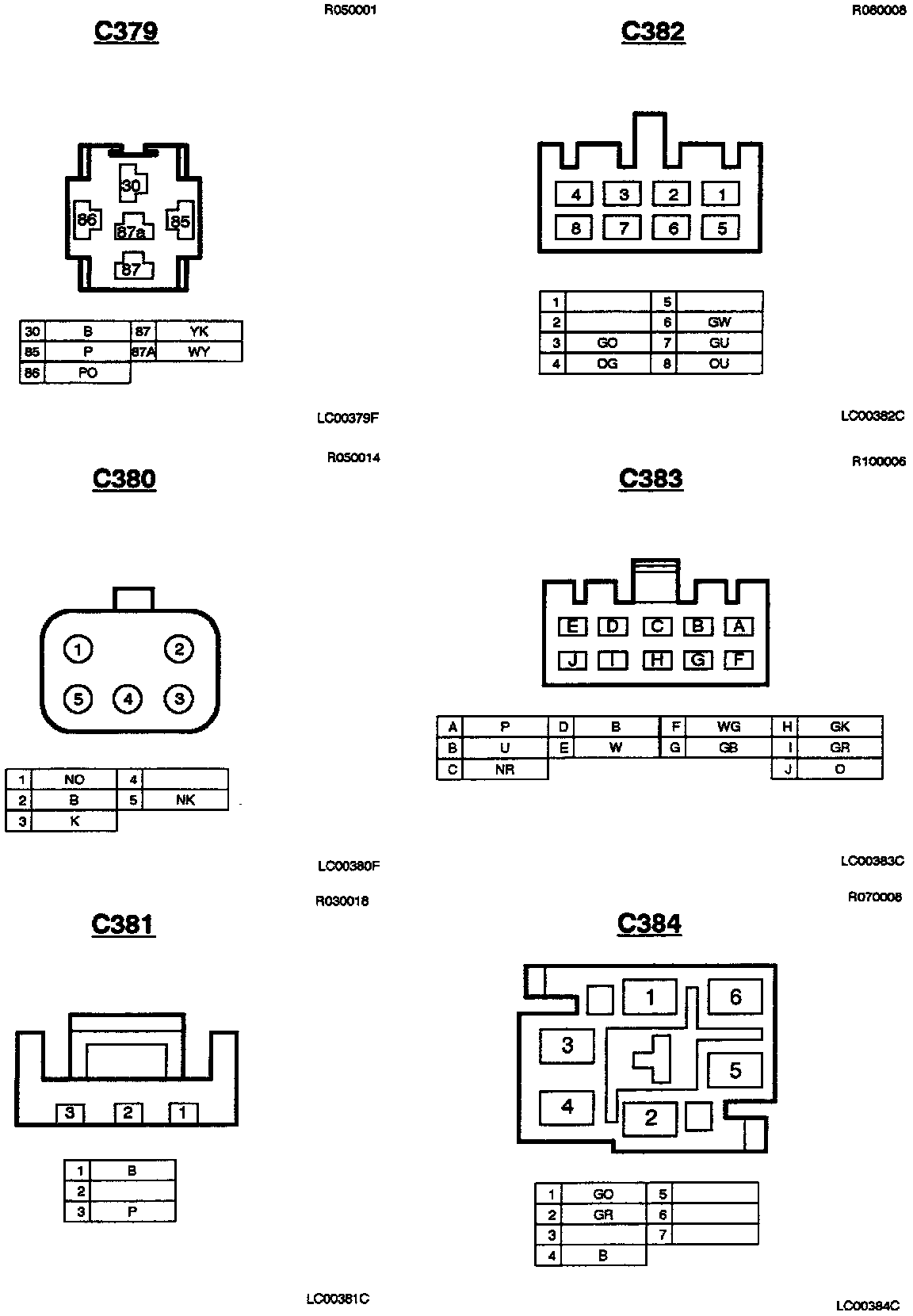

C379, C380, C381, C382, C383, C384:
