Vacuum Pump: Service and Repair

NOTE: The vacuum pump is non serviceable, fit a new unit if failure or damage occurs.

Remove





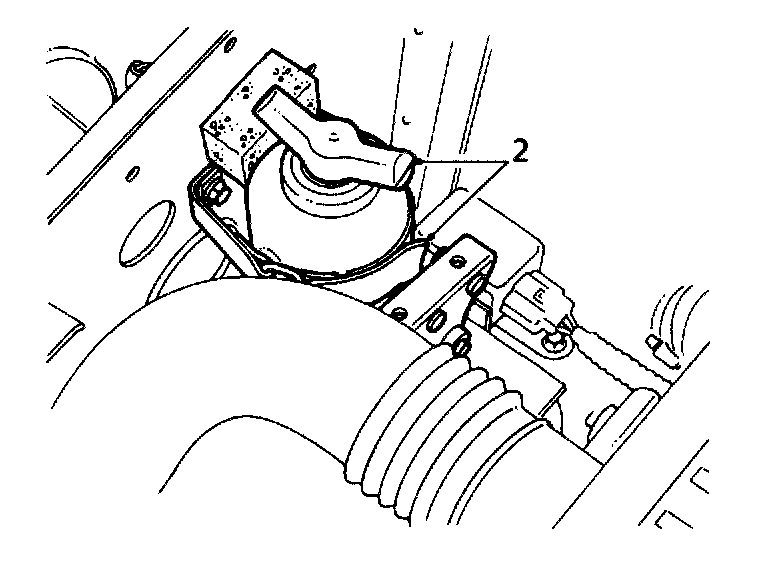

1. Release turnbuckle securing wheel chock and remove.





2. Release strap securing jack and remove.
3. Release 3 pump mounting rubbers from vehicle body.
4. Manoeuvre pump out of box section.

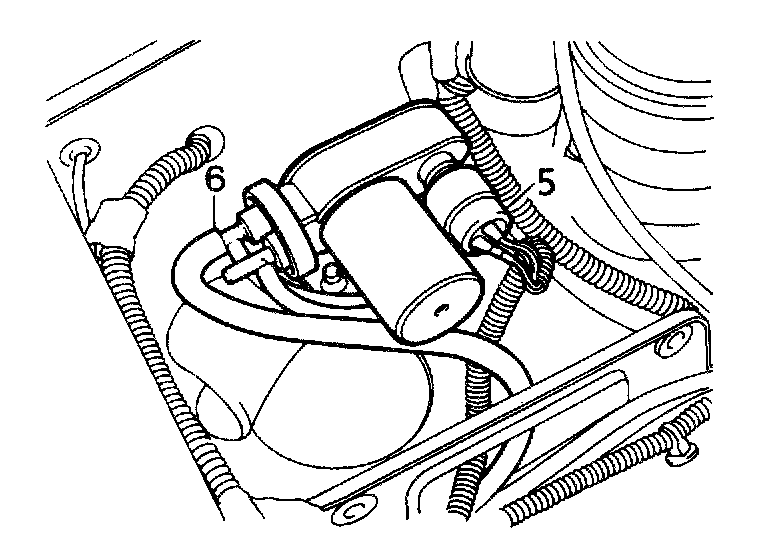

5. Release multiplug cover and disconnect multiplug from pump.
6. Disconnect vacuum hose from pump.
7. Remove pump.

Refit
8. Reverse removal procedure. Ensure all hose and electrical connections are secure.
