Condenser Fan: Service and Repair

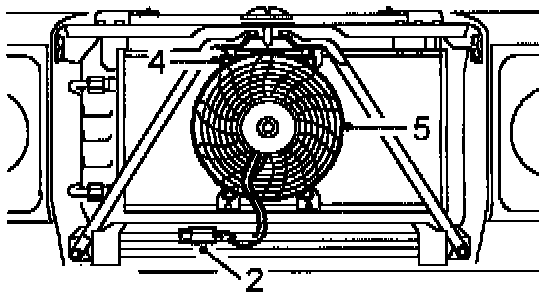

Remove1. Remove grille panel.
2. Disconnect multiplug from condenser fan fly-lead.
3. Withdraw fly-lead from between radiator and panel.
4. Remove nuts securing fan to condenser brackets.
5. Remove fan assembly.
Refit
6. Position fan on brackets and secure with nuts.
7. Pass fly-lead through and connect to multiplug.
8. Fit grille panel.
