Fuse: Locations

Fuse Box

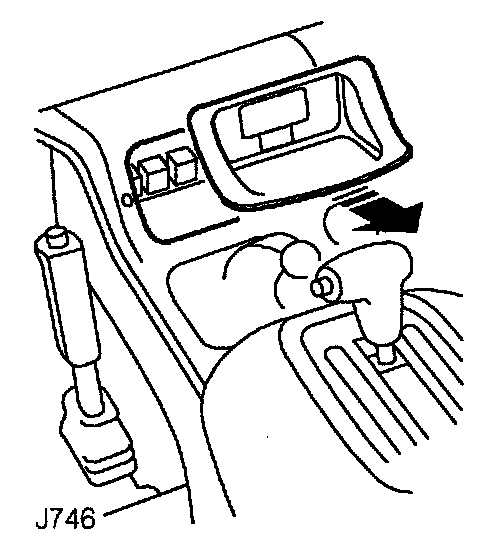

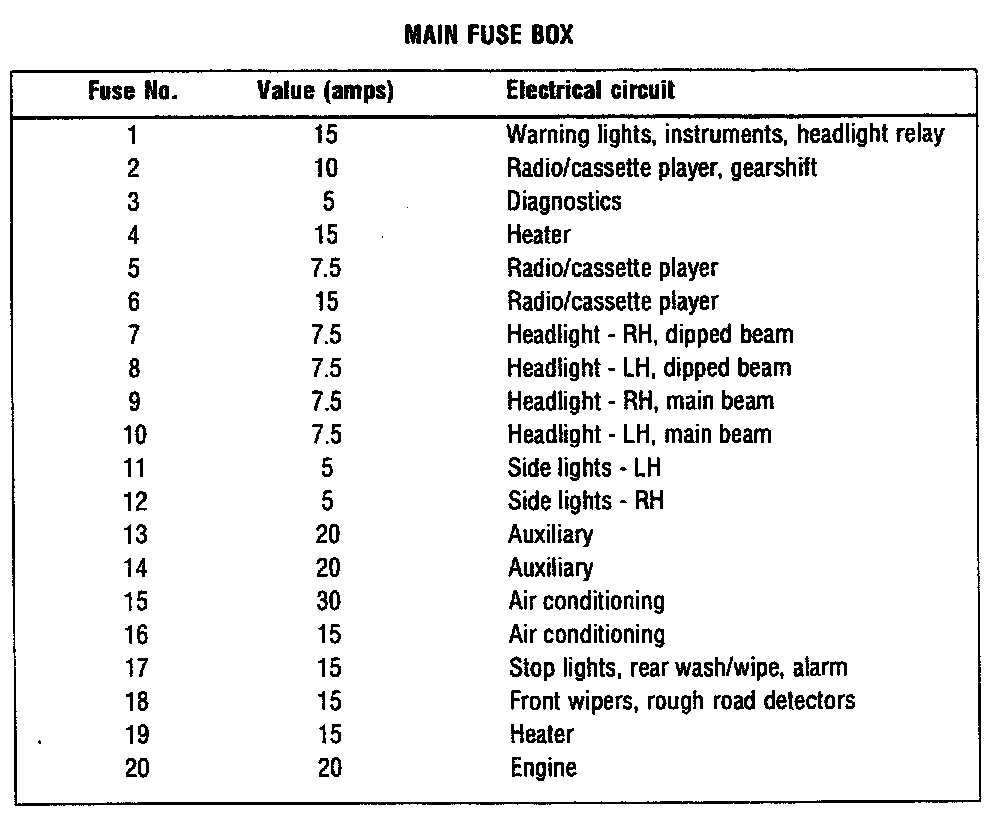

The main fusebox is located behind an access panel in front of the transfer box gear lever. Pull the panel away from the console to gain access to the fuses. The fuse ratings and the circuits they protect are in the following chart.

After changing a fuse, endure the access panel is firmly secured by the velcro fixings.






Engine Compartment Fuse Box
The second fusebox is located on the left side of the engine compartment, adjacent to the brake fluid reservoir. Press the catch (arrow) and lift the lid to open.

The circuits protected and their locations are shown on the printed diagram on the inside of the fusebox cover.




30A Chassis
20A Clock, horn
30A Diagnostics
20A Spare
30A Hazzard lights
15A Fuel pump
30A Fuel injection
