Transmission Identification Number

Automatic gearbox serial number





The serial number is stamped on a plate attached to the LH side of the casing.

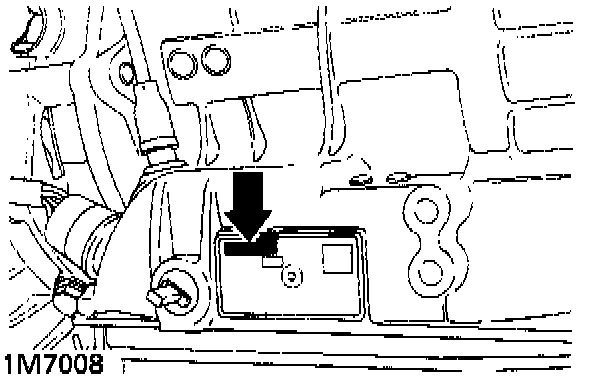

Transfer gearbox serial number





The serial number is stamped on the LH side of the gearbox casing below the mainshaft rear bearing housing adjacent to the bottom cover.

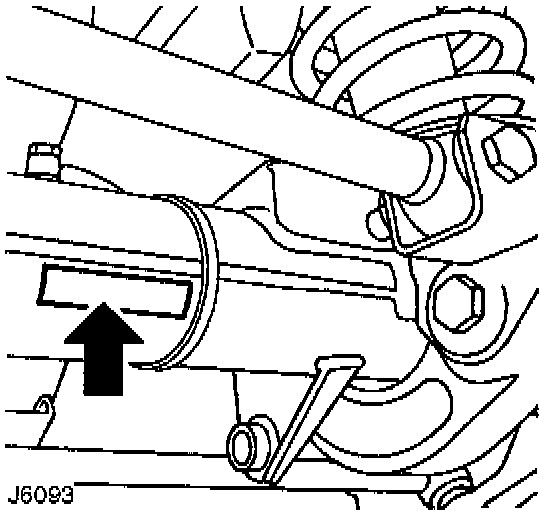

Front axle serial number





Serial number is stamped on the front of LH axle tube.

Rear axle serial number





Serial number is stamped on rear of LH axle tube.
