Data Link Connector: Locations

No. Description

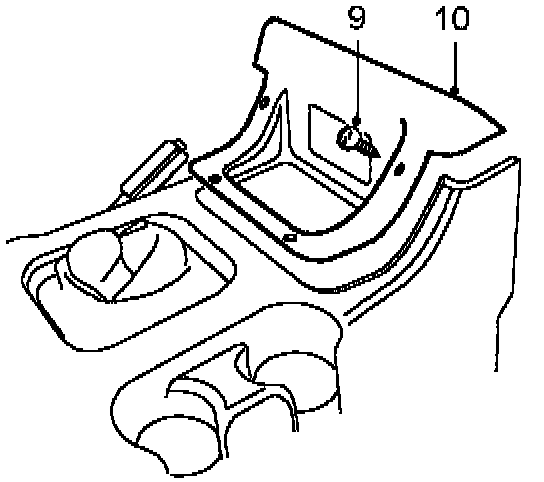

9. Remove 4 screws securing fusebox cover to centre console.
10. Remove cover.

C40-Diagnostic Connector:

C40 DIAGNOSTIC CONNECTOR 16 Way Female BLACK Behind front of center console

A diagnostic connector, located below the passenger compartment fuse box, allows engine tuning or fault diagnosis to be carried out using TestBook.
