Connectors

Connectors: Header Joint:

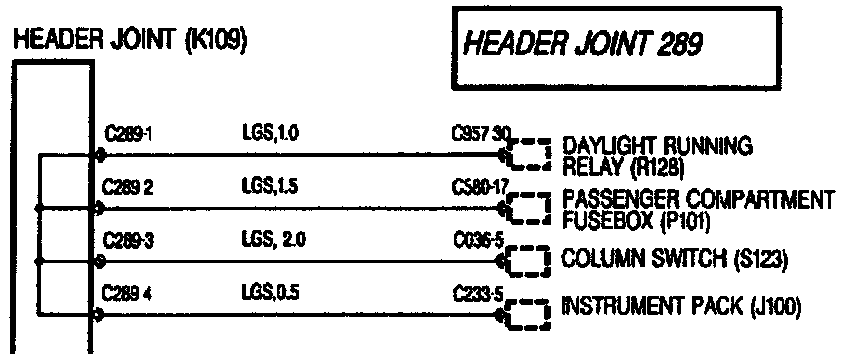

Header joints are identified by their corresponding connector number with a numbered suffix to indicate the pin-out detail of the wire, i.e. C289-1 identifies connector 289, pin number 1. Wire insulation color is identified in the normal way. Where wires have a predominant color with a secondary color stripe, the main stripe is identified first, i.e. LGS - Light Green with a Slate stripe.
