MAF Sensor - Harness Connector Replacement: Overview
04/25/97H460
SUBJECT
Mass Air Flow Sensor Harness Connector Replacement
MODEL
Defender 90
AFFECTED VEHICLES
LD VA999307 to VA108148
DETAIL
1997 Defender 90 Mass Air Flow (MAF) sensor engine harnesses were specified for gold plated harness connector pins. Some early 1997 model year vehicles were not built to this specification. Vehicles within the VIN range above have incorrectly coated connector pins. To ensure that vehicles receive the correct gold plated connections, a harness modification kit is available for installation onto the affected vehicles.
NOTE:
The correct use of the kit requires the connectors be CRIMPED AND SOLDERED. See the procedure steps for full details.
ACTION REQUIRED

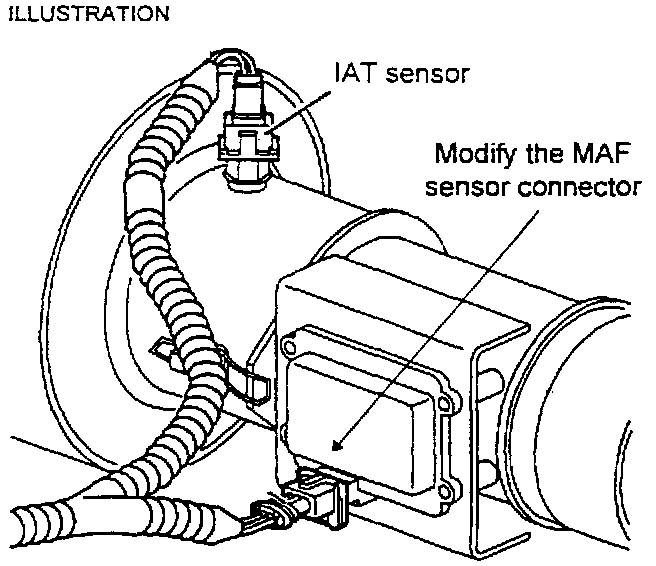

At the earliest opportunity (Pre-Delivery Inspection, warranty repair work or regular service interval) follow the procedure below to install the new Mass Air Flow (MAF) sensor harness connector.
PARTS INFORMATION
AMR5713C - Harness modification kit*
^ Three pin connector with wiring
^ Shrink wrap tubing
^ Crimps
*ONLY ORDER KIT QUANTITIES REQUIRED TO REPAIR VEHICLES SOLD BY YOUR DEALER OR INVENTORY. Parts supply has been tailored to the number of vehicles requiring corrective action.
WARRANTY
Normal warranty policy and procedures apply
COMP. CODE
H460
SRO
Claim Type: M
Campaign Code: H460
Time: 0.65 hr.
Parts: AMR5713C
Part Reimbursement: $4.20
