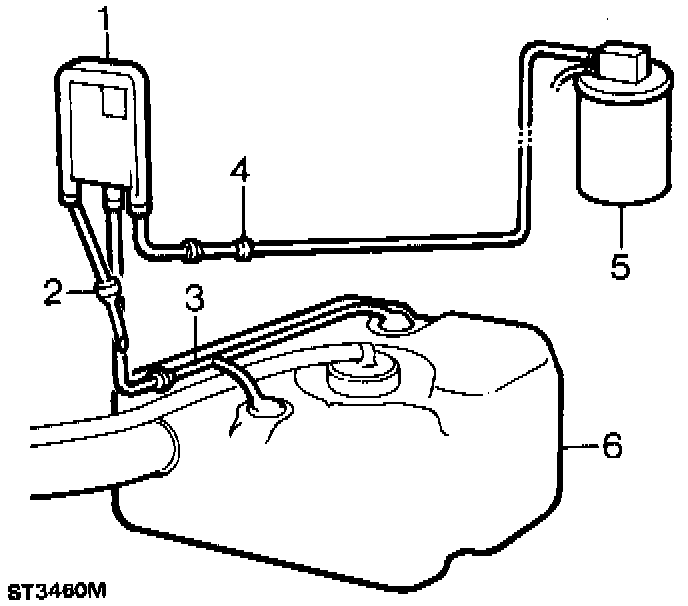

Evaporative Emissions System: Locations
1.
Vapor separator and pipes
2.
Non-return valve to atmosphere
3.
Pipe from fuel tank
4.
Pipe to EVAP canister
5.
EVAP canister and purge valve
6.
Fuel tank
