Transmission and Drivetrain: Application and ID

DESCRIPTION
An adhesive label containing the Vehicle Identification Number, date of manufacture and gross axle weight ratings is positioned in a recess on the LH side of the driver's footwell. The information also includes wheel and tire sizes and tire pressures at gross axle weight ratings.





Key To Vehicle Identification Label
A. Month and year of manufacture
B. Gross vehicle weight rating
C. Gross axle weight rating for front axle
D. Gross axle weight rating for rear axle
E. Vehicle identification number (17 digits)
F. Vehicle identification number-bar code

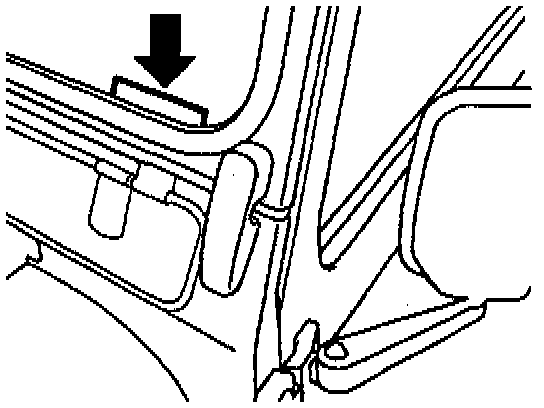

The VIN is also stamped on a plate visible through the LH side of the windscreen.

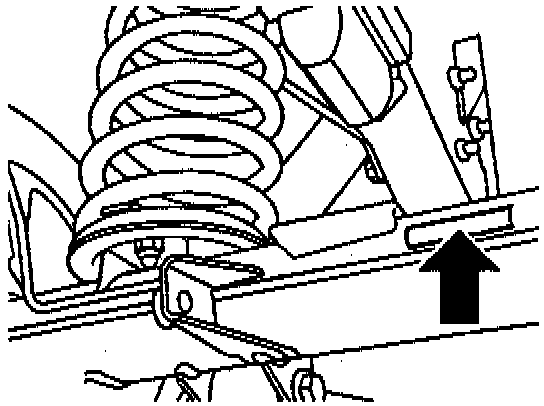

The number is also stamped on the RH side of the chassis to the rear of the front lashing eye.





LOCATION OF IDENTIFICATION NUMBERS
Engine Serial Number
Stamped on a cast pad on the cylinder block, between numbers 3 and 5 cylinders.

NOTE: The appropriate engine compression ratio is stamped above the serial number.





Automatic Gearbox Serial Number
The serial number is stamped on a plate attached to the LH side of the casing.





Transfer Gearbox Serial Number
The serial number is stamped on the LH side of the gearbox casing below the mainshaft rear bearing housing adjacent to the bottom cover, see J6092





Front Axle Serial Number
Serial number is stamped on the front of LH axle tube.





Rear Axle Serial Number
Serial number is stamped on rear of LH axle tube.
