Electronic Control Unit - Rear Air Conditioning

Electronic Control Unit - Rear Air Conditioning

Remove
1. Remove rear compartment lower trim panel.

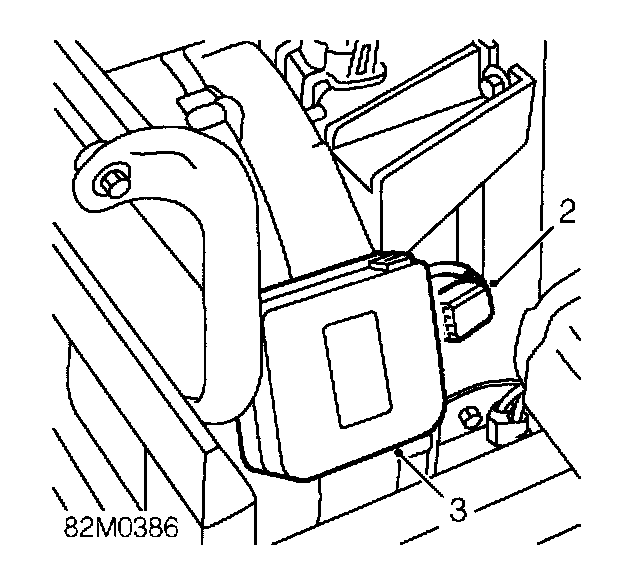

2. Disconnect multiplug from ECU.
3. Remove ECU from mounting bracket.

Refit
4. Fit ECU to mounting bracket and connect multiplug.
5. Fit rear compartment lower trim panel.
