Home
>>
Land Rover
>>
1998
>>
Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diode
>>
Locations
>>

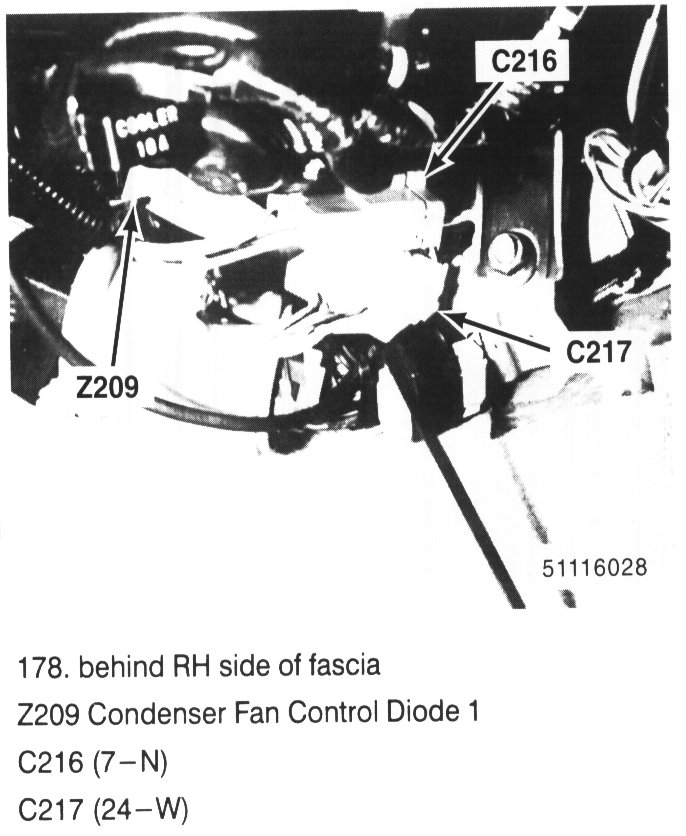

Condenser Fan Control Diode 1 (Z209)
Condenser Fan Control Diode 1 (Z209)
Engine Wire Harness near C217
