Land Rover
>>
1998
>>
Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diode
>>
Locations
>>

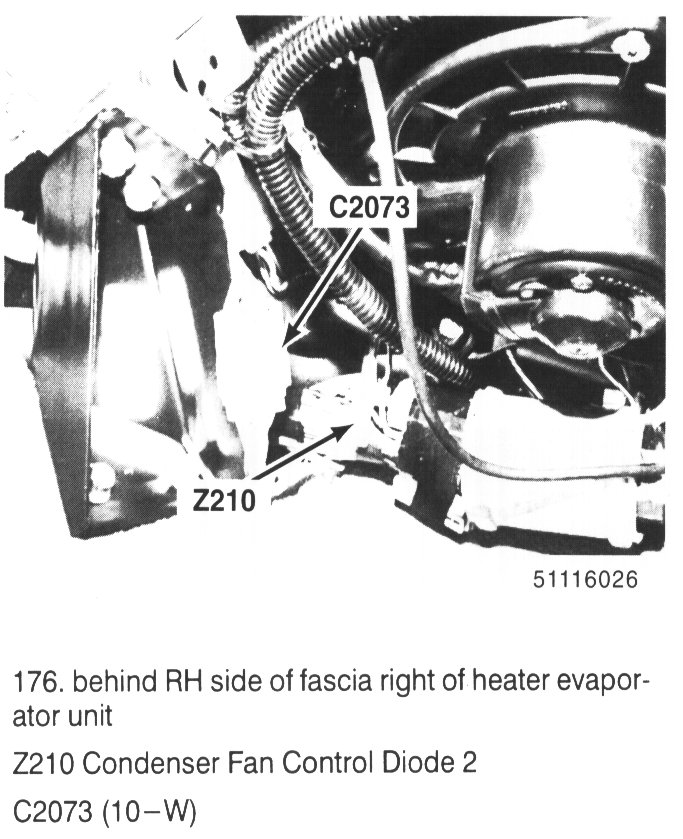

Condenser Fan Control Diode 2 (Z210)
Condenser Fan Control Diode 2 (Z210)
Main Wire Harness behind RH side of fascia near C2073
