Air Temperature Sensor ( Ambient / Intake ): Service and Repair

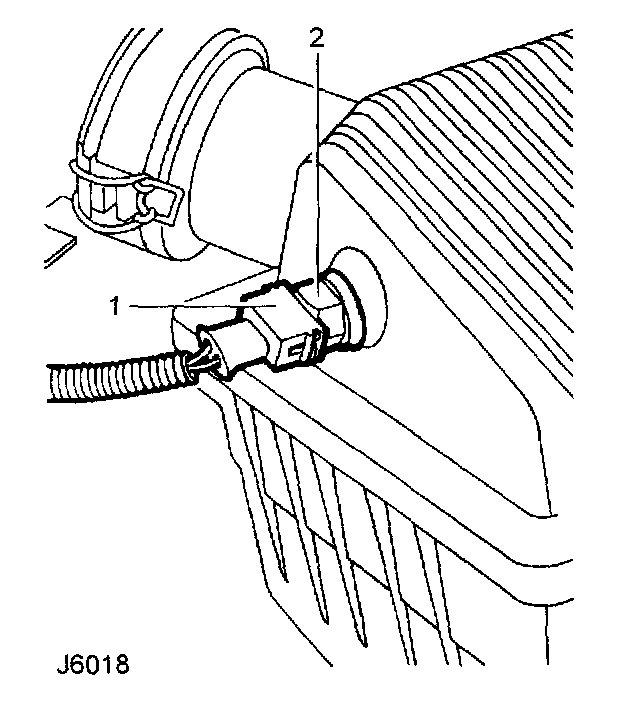

Intake Air Temperature Sensor (IAT Sensor)

Remove







1. Disconnect multiplug from IAT sensor.
2. Remove IAT sensor from air cleaner.

Refit
3. Clean sensor and mating face.
4. Fit IAT sensor. Tighten to 8 Nm.
5. Connect multiplug.
