Steering: Adjustments

Lock Stop Adjust
1. Raise the vehicle.

WARNING: Support on safety stands.

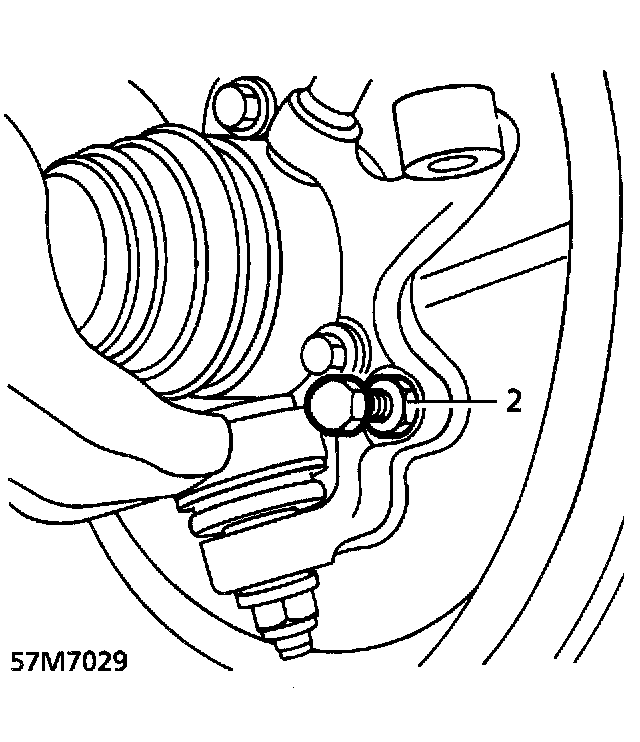

2. Slacken LH lock stop locknut. Screw stop bolt clockwise, fully into hub.
3. With assistance, start the engine, turn steering onto right hand lock until resistance is felt.

NOTE: Resistance is created by hydraulic limiter inside steering box.

4. With the steering held, unscrew anti-clockwise, stop bolt until it contacts the axle. Screw bolt back in clockwise, by 3 flats.
5. Tighten locknut.
6. Return steering to center. Turn back to full right hand lock to check adjustment.

NOTE: Resistance should be felt prior to lock stop operation.

7. Repeat for RH lock stop.
8. Stop engine.
9. Remove safety stands. Lower vehicle.
