Air Register: Service and Repair

Face Level Vents Replacement


Service repair no - 80.15.04 - RH
Service repair no - 80.15.05 - LH
Service repair no - 80.15.63 - Centre

Remove

Centre Vent

CAUTION: Use of the following method may cause damage to the vanes of the vent. It is not advisable to remove the vent unless it is to be renewed.

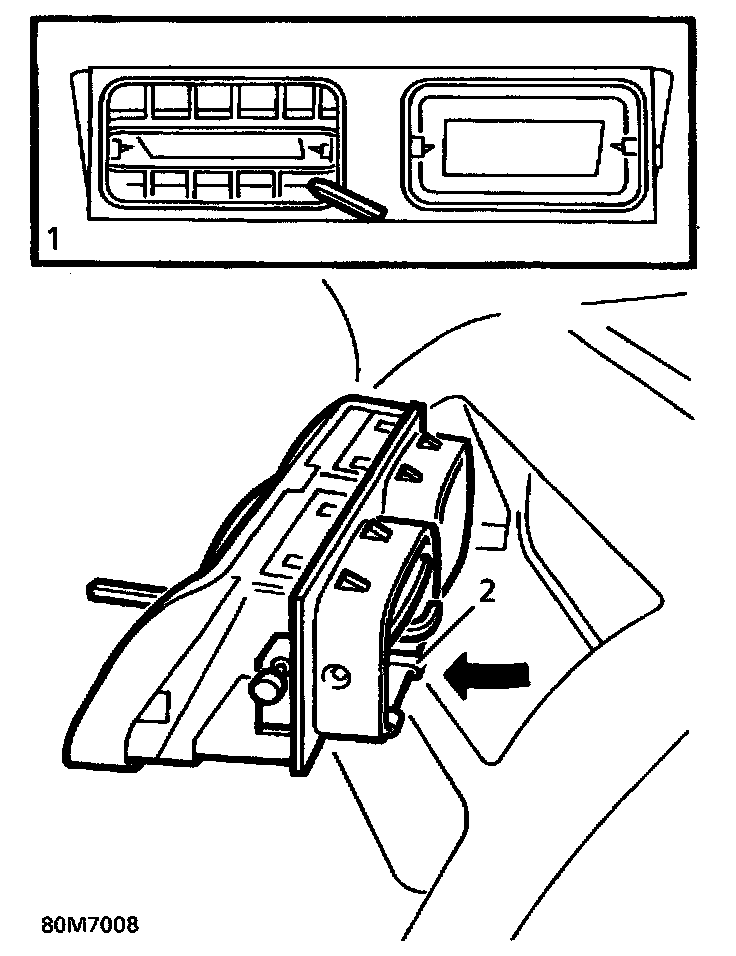

1. Carefully insert a 5 mm Allen key, or similar hooked tool, through vent as shown.





2. Withdraw central face level vent from fascia.

Side Vents
3. Passenger side: Open glove box. Remove 5 screws securing glove box liner to fascia and lower glove box for access to rear of vent.





4. Drivers side. Remove fascia closing panel for access to rear of vent.
5. Drivers side. Remove lap vent elbow and tube.

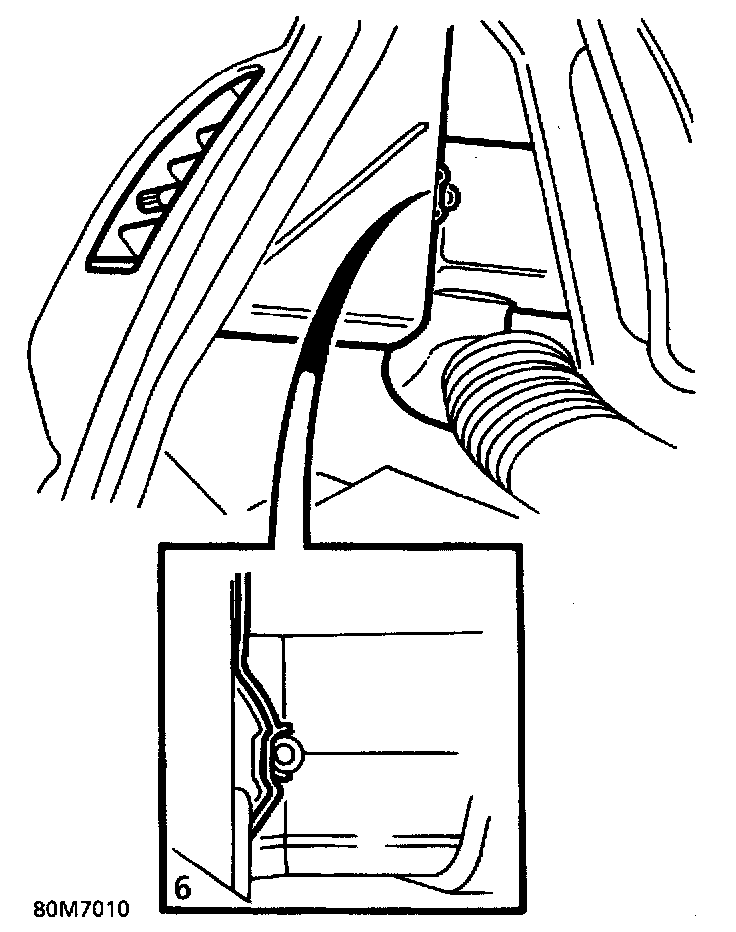

6. Remove clip securing vent to fascia. Release vent from fascia. Remove vent.





Refit
7. Reverse removal procedure.
