Air Register: Service and Repair

Ventilator - Face Level - LH

Service Repair No - 80.15.05

Remove

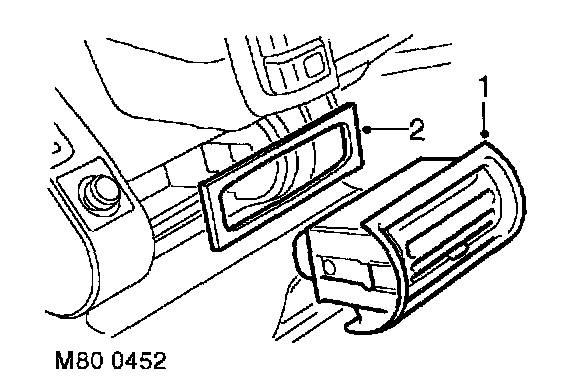

1. Protect fascia and carefully lever vent from fascia.
2. Remove and discard seal.

Refit
1. Fit new seal to vent.
2. Fit vent to fascia.
