Solar Sensor: Service and Repair

Sensor - Solar Light - Automatic Temperature Control


Service repair No - 82.20.92

Remove
1. Make the SRS system safe.
2. Remove fascia carrier.

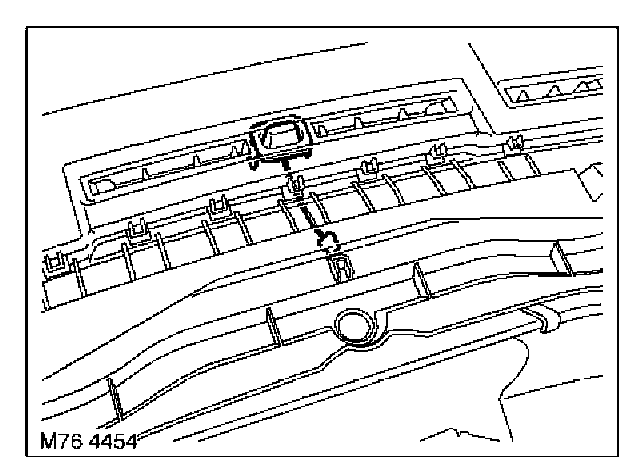

3. Release and remove solar sensor.

Refit
1. Fit solar sensor.
2. Fit fascia carrier.
