Multiple Set Ignition Coils

Multiple Set Ignition Coils


Service repair no - 18.20.45


Before disconnecting the battery, ensure all text and cautions in the battery disconnection procedure are observed.

Remove

1. Remove engine acoustic cover.
2. Remove LH ignition coil cover.
3. Remove RH ignition coil cover.







4. Remove 2 nuts and disconnect earth leads from camshaft covers.

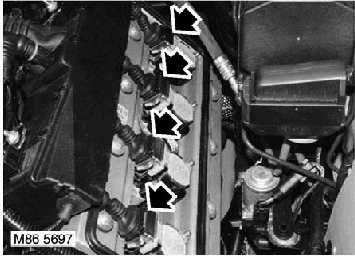

5. Disconnect multiplugs from ignition coils.
6. Discard ignition coil cover gasket.

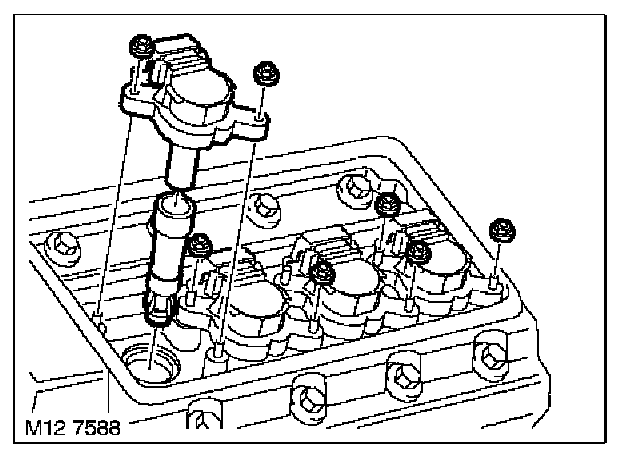

7. Remove 14 ignition coil securing nuts. Remove 8 ignition coils.

Refit

1. Fit 8 ignition coils.
2. Fit 14 nuts securing ignition coil and tighten to 4 N.m (3 lbf.ft).
3. Fit new ignition coil cover gasket.
4. Connect multiplugs to ignition coils.
5. Connect earth lead to camshaft cover and tighten nut to 4 N.m (3 lbf.ft)
6. Fit RH ignition coil cover.
7. Fit LH ignition coil cover.
8. Fit engine acoustic cover.
