Driver Side Register

Driver Side Register

Removal

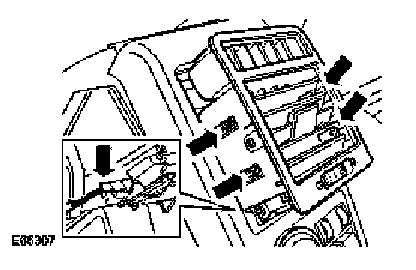

1. Remove the register.
^ Carefully release the 4 internal clips, apply a even outward pressure until the last clip is released.
^ Disconnect the electrical connector.

CAUTION: Care must be taken to avoid damaging the register internal components.







Installation
1. Install the register.
^ Connect the electrical connector.
^ Position and secure the clips.
