Driver Side Register Trim Panel

Driver Side Register Trim Panel

Service Repair No - 76.46.12

Removal

1. Remove the driver side register trim panel.
^ Release the 2 clips.
^ Disconnect the electrical connector.





NOTE: Do not disassemble further if the component is removed for access only.

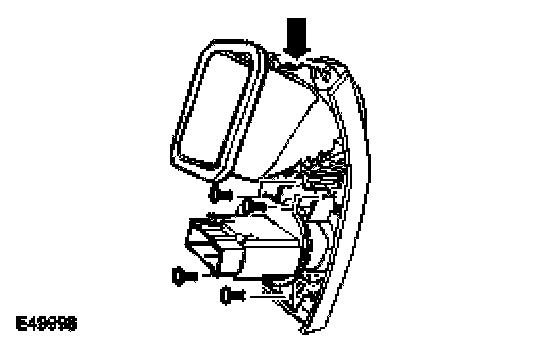

2. Remove the register.
^ Release the 4 clips.





3. Remove the headlamp switch.
^ Remove the 4 Torx screws.





Installation
1. Install the headlamp switch.
^ Tighten the Torx screws.

2. Install the register.
^ Secure with the clips.

3. Install the driver side register trim panel.
^ Connect the electrical connector.
^ Secure with the clips.
