Auxiliary Climate Control

Register

Removal

1. Remove the floor console stowage compartment lid.

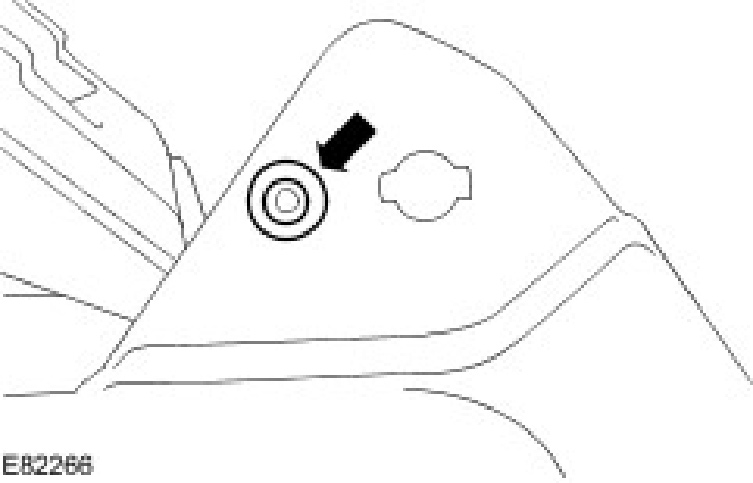

2. Remove the floor console stowage compartment lid damper sleeve.





NOTE: Floor console shown removed for clarity.

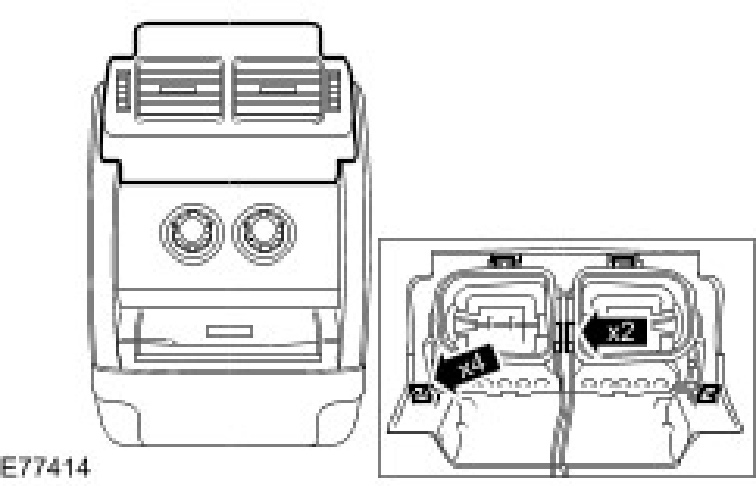

3. Remove the register.
^ Carefully release the 4 clips.
^ Disconnect the 2 electrical connectors.





Installation
1. Install the register.
^ Connect the 2 electrical connectors.
^ Secure the 4 clips.
2. Install the floor console stowage compartment lid damper sleeve.
3. Install the floor console stowage compartment lid.
