Driver Side Register

Driver Side Register

Removal

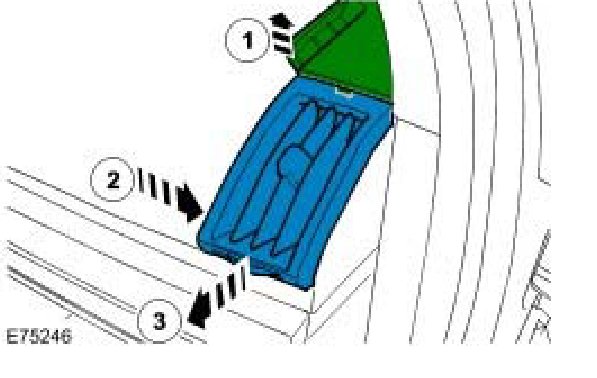

NOTE: Right-hand shown, left-hand similar.

1. Remove the register.

Installation
1. To install, reverse the removal procedure.
