Heater Core: Service and Repair

Heater Core

Removal
1. Disconnect the battery ground cable.
2. Drain the cooling system.

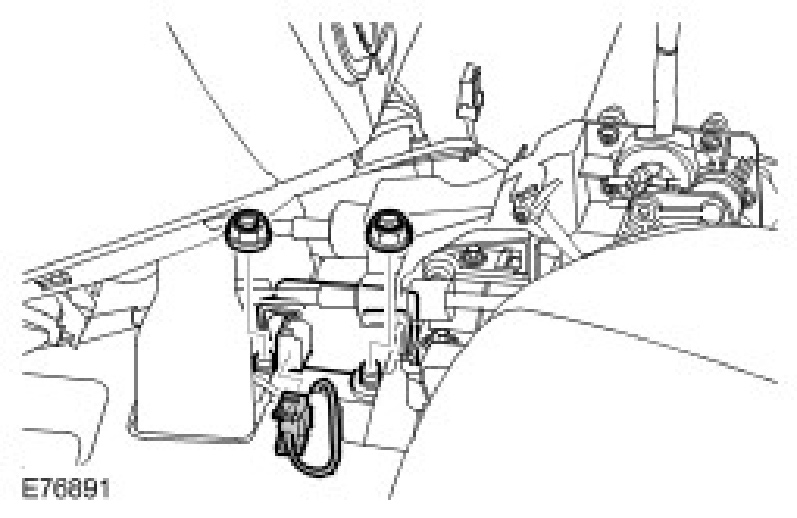

3. Remove the selector lever.

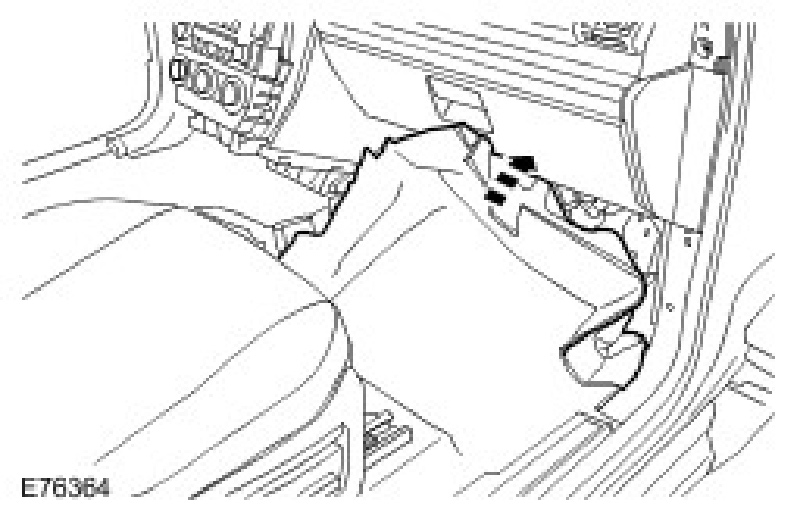

5. Remove the cowl side trim panel.

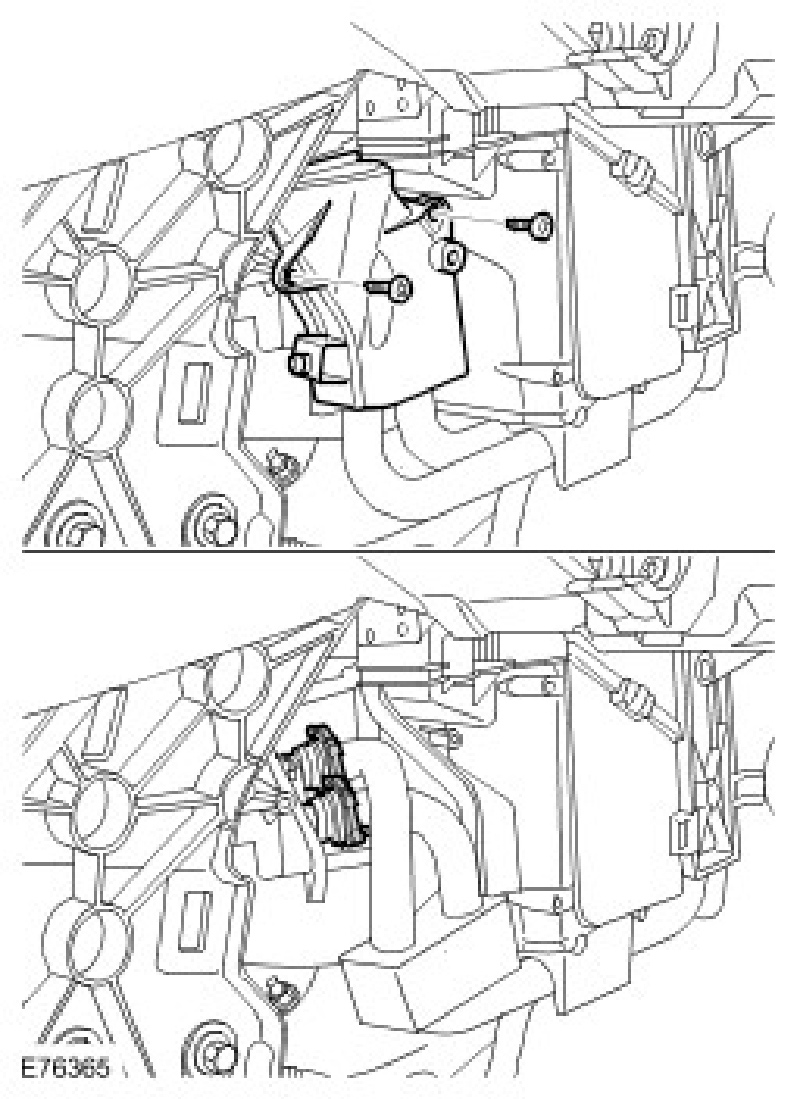

9. Torque: 6 Nm





10. CAUTION: Be prepared to collect escaping coolant.









Installation
1. To install, reverse the removal procedure.
