Battery Tray

Battery Tray

Removal
1. Remove the battery.

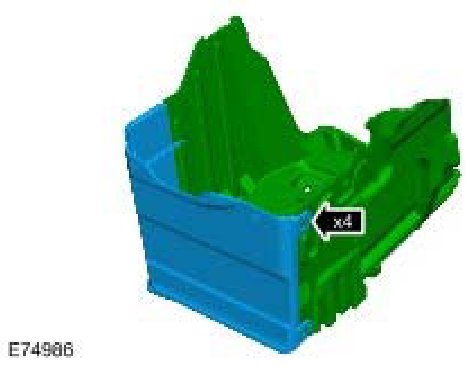

2. NOTE: Removal steps in this procedure may contain installation details.

Torque: 10 Nm





3. NOTE: Do not disassemble further if the component is removed for access only.





Installation
1. To install, reverse the removal procedure.
