Power Door Lock Actuator
>>
Motor-Central Door-Locking-Rear-LH
Motor-Central Door-Locking-Rear-LH
Motor-Central Door-Locking-Rear-LH

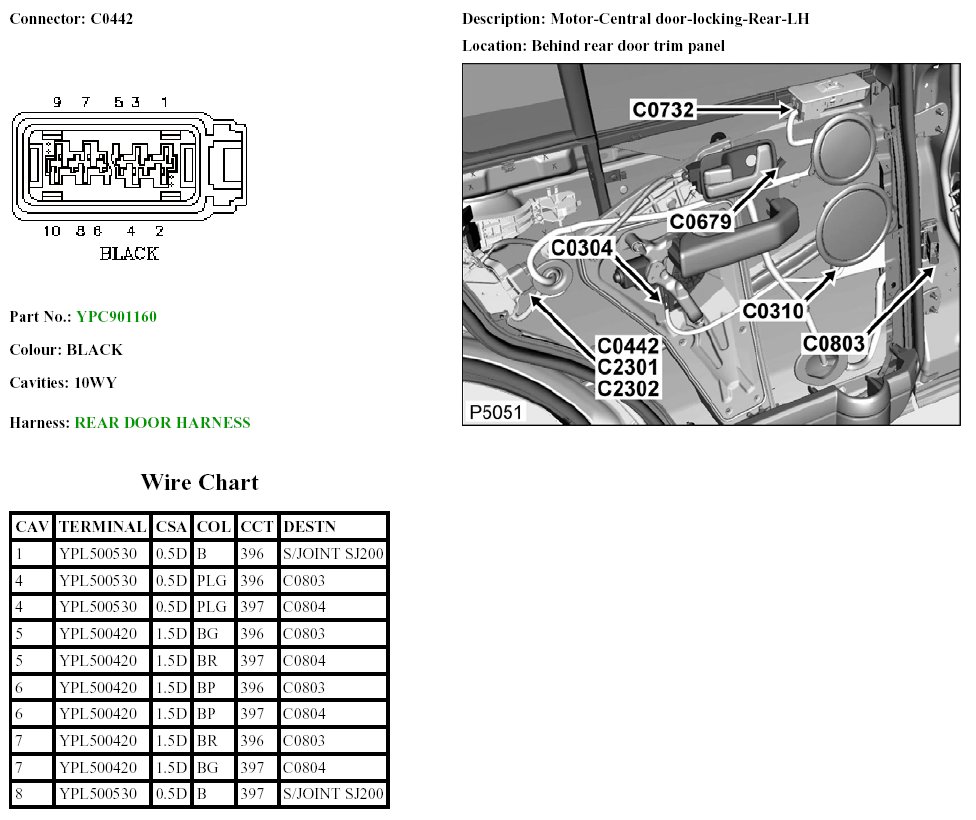

C0442:
