Power Door Lock Actuator
>>
Motor-Central Door-Locking-Rear-RH
Motor-Central Door-Locking-Rear-RH

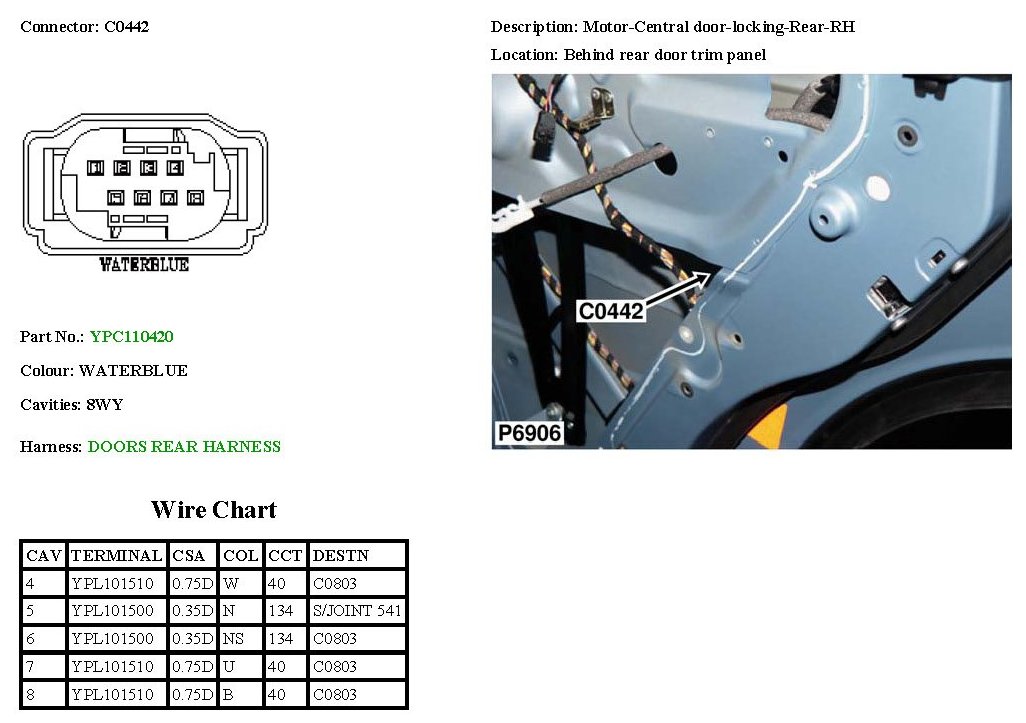

C0442:
