Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

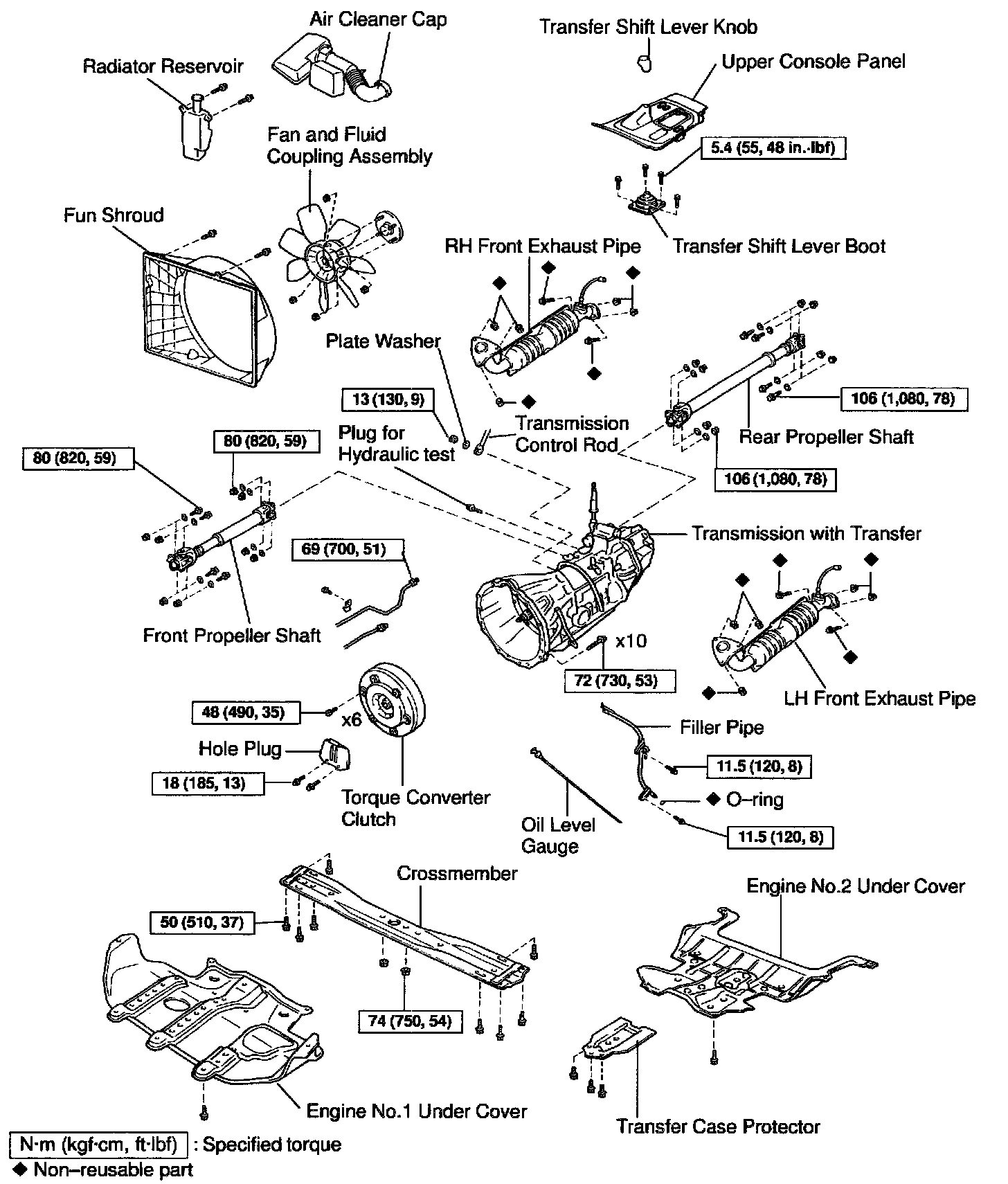

External Components:

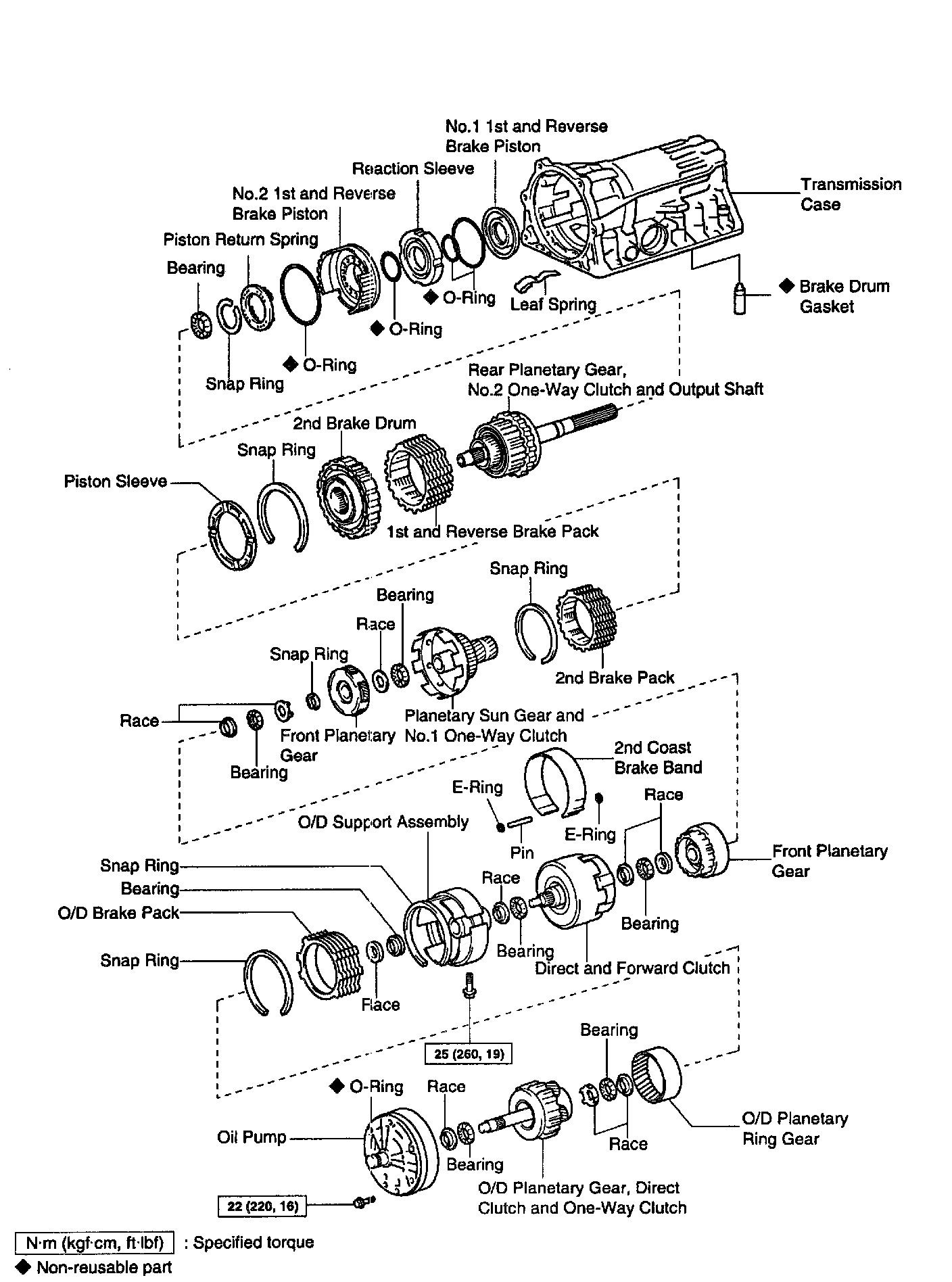

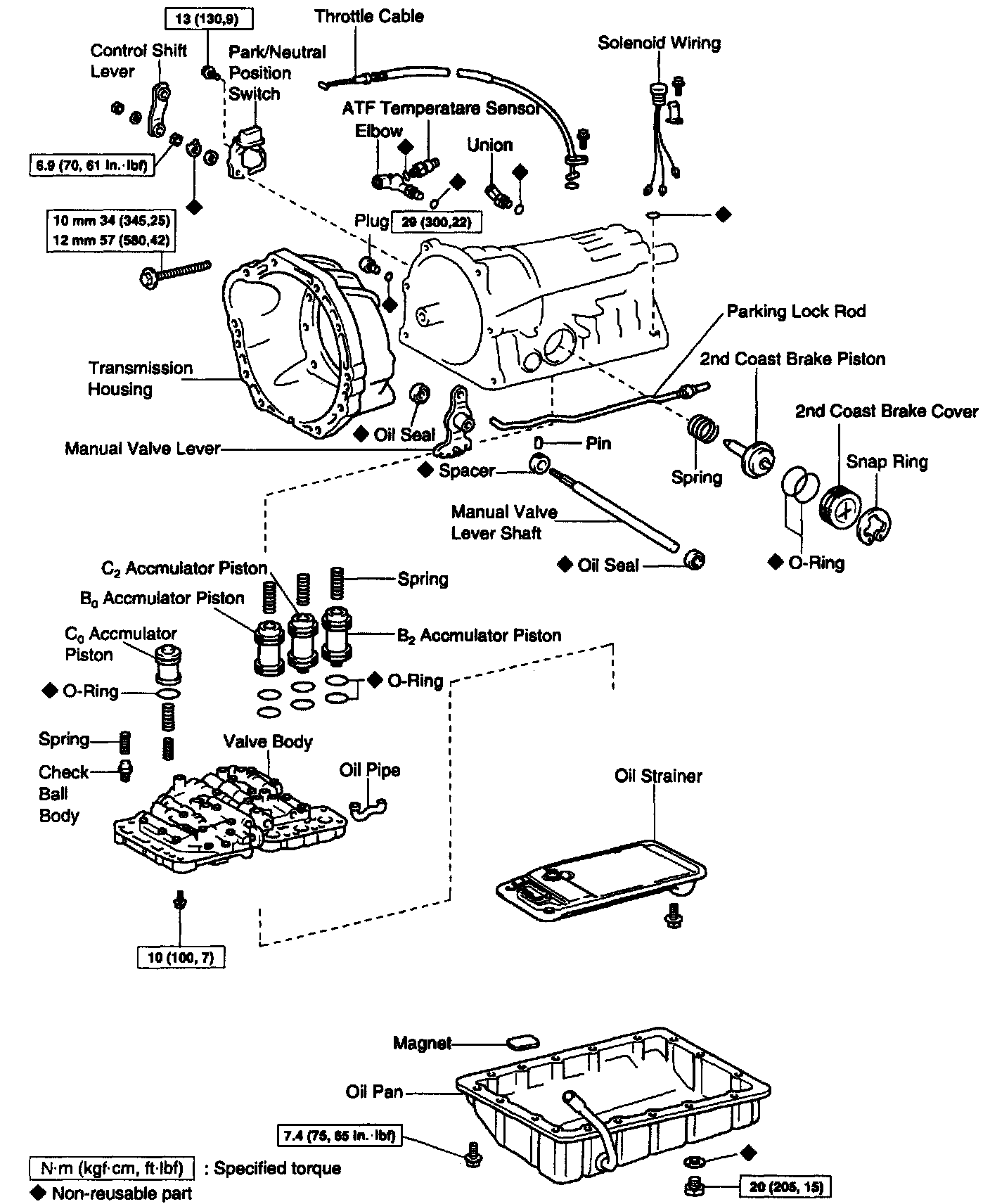

Internal Components:
