Lexus Truck
>>
2000
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

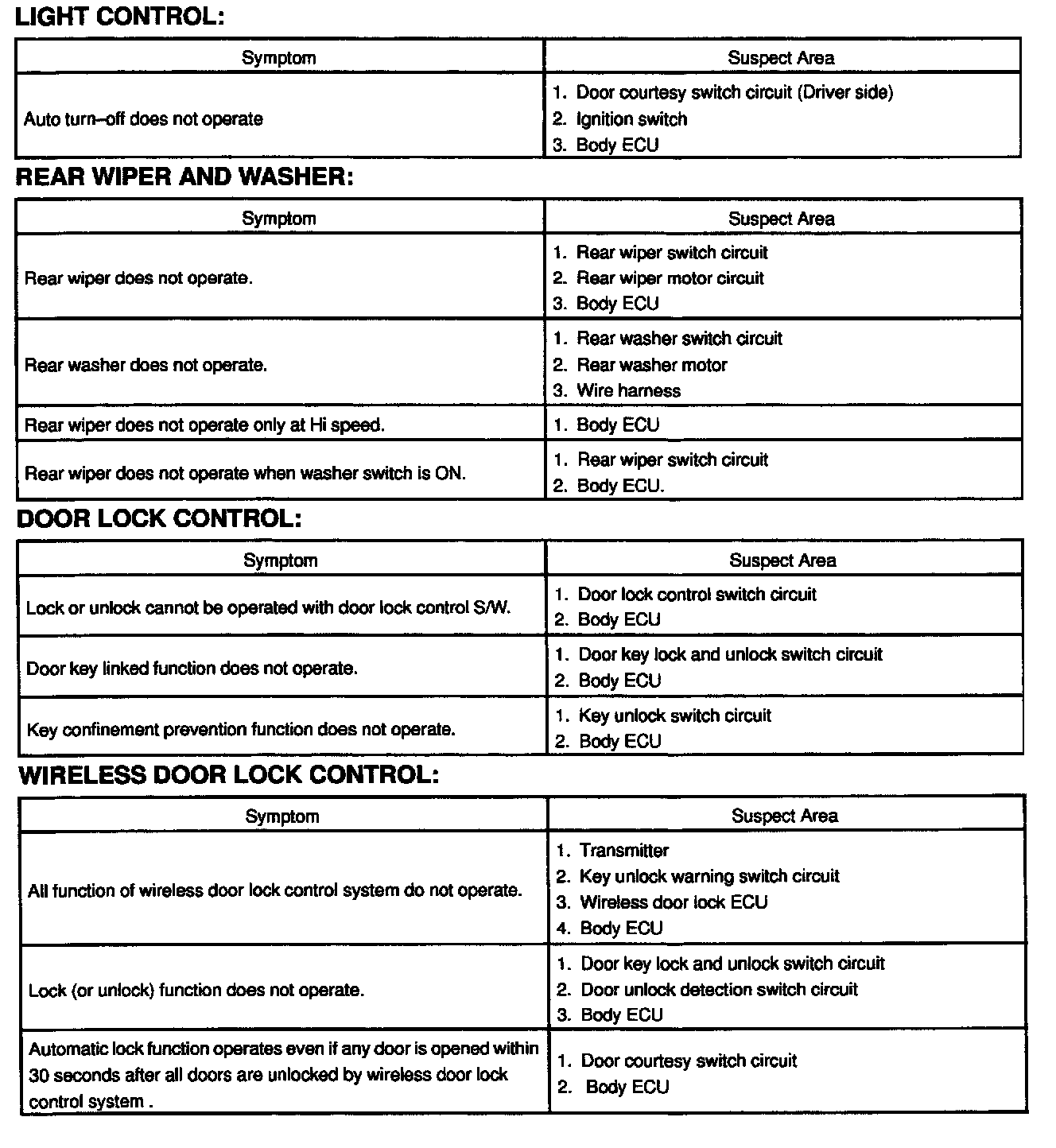

Body Control System (1 Of 2):

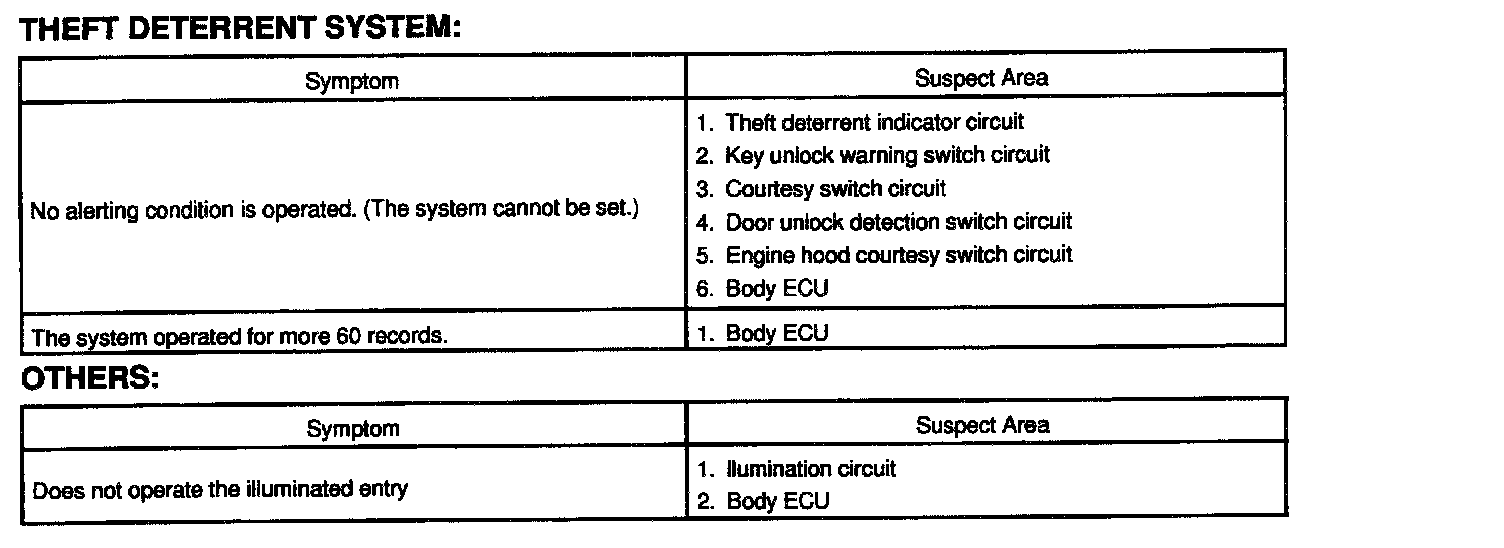

Body Control System (2 Of 2):
