Position Sensor Power Source Circuit
Position Sensor Power Source CircuitDESCRIPTION
This circuit provides power to the slide and lifter position sensors.
WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

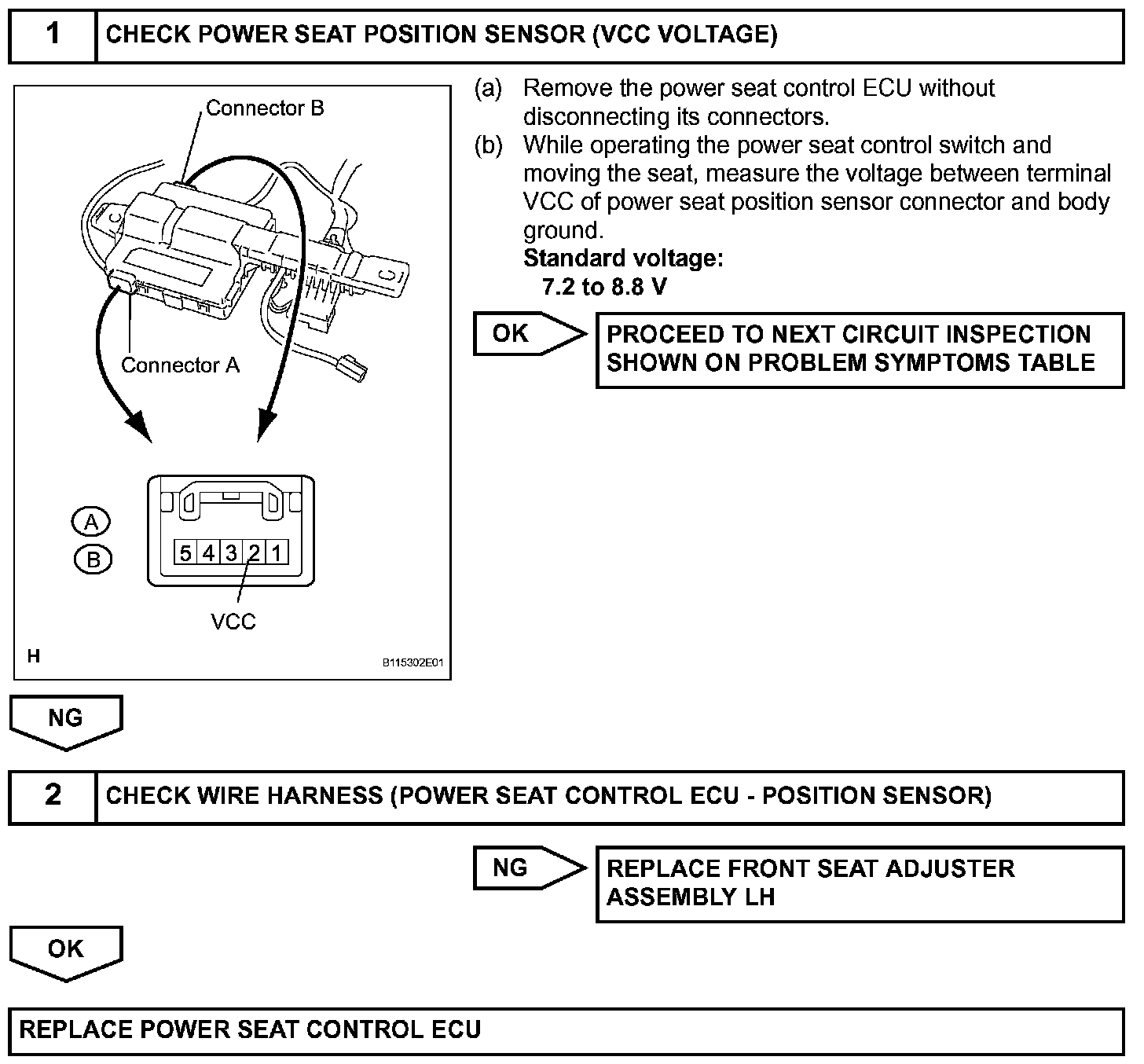

Step 1 - 2:
DESCRIPTION
This circuit provides power to the slide and lifter position sensors.
WIRING DIAGRAM
INSPECTION PROCEDURE
