Knock Sensor: Testing and Inspection
INSPECTION

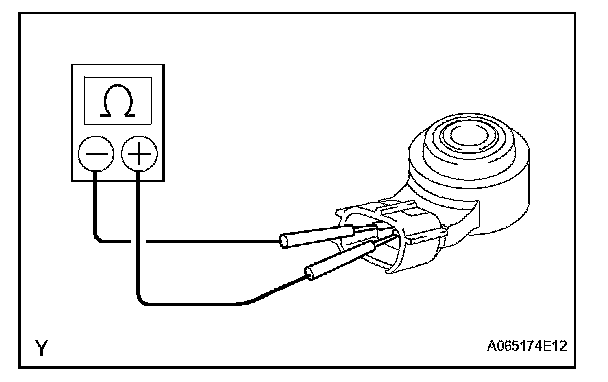

1. INSPECT KNOCK CONTROL SENSOR
a. Measure the resistance between the terminals.
Standard Resistance: 120 to 280 kohms at 20 °C (68 °F)
If the result is not as specified, replace the sensor.
1. INSPECT KNOCK CONTROL SENSOR
a. Measure the resistance between the terminals.
Standard Resistance: 120 to 280 kohms at 20 °C (68 °F)
If the result is not as specified, replace the sensor.
