Service Data
Service Data

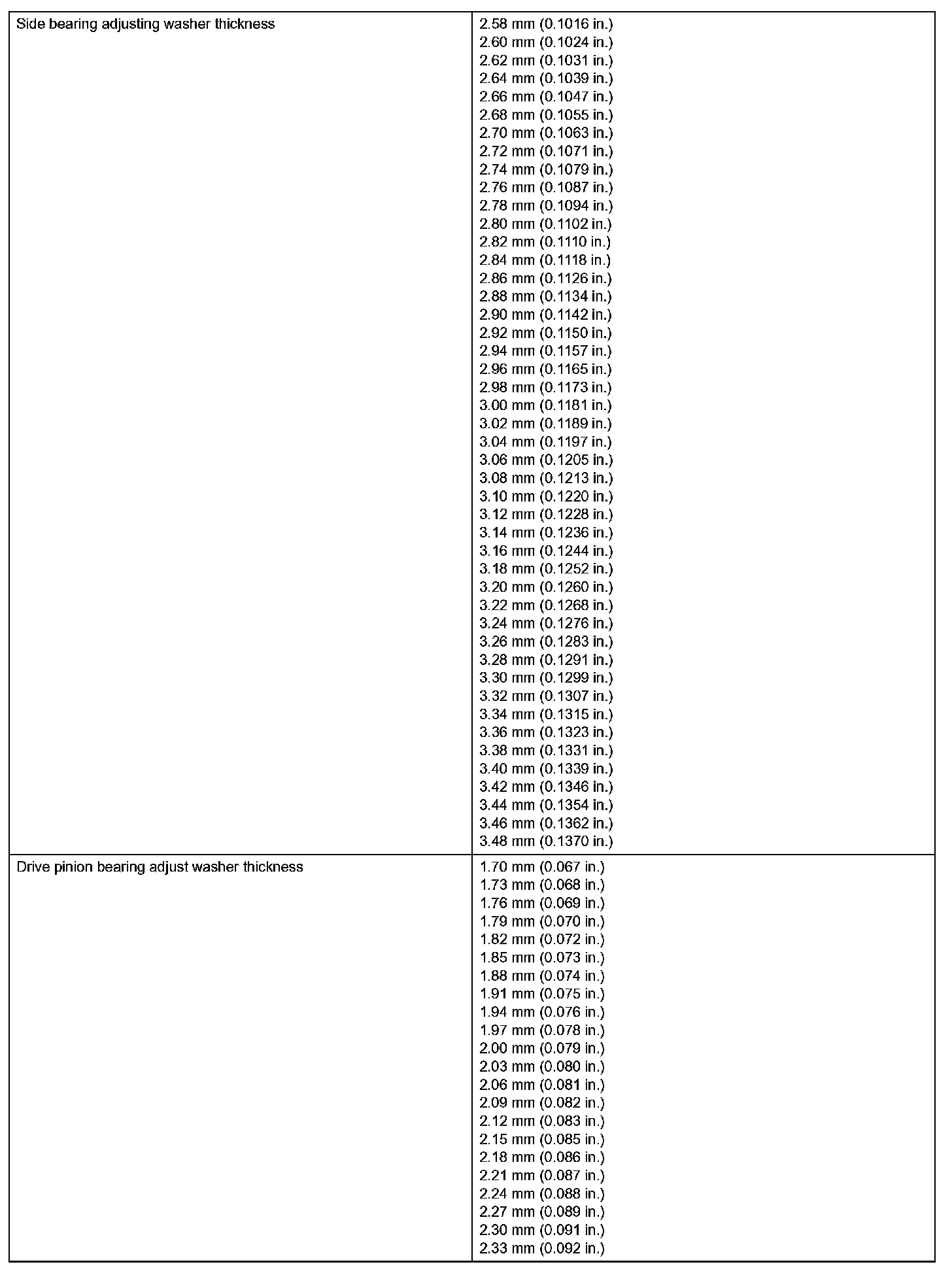

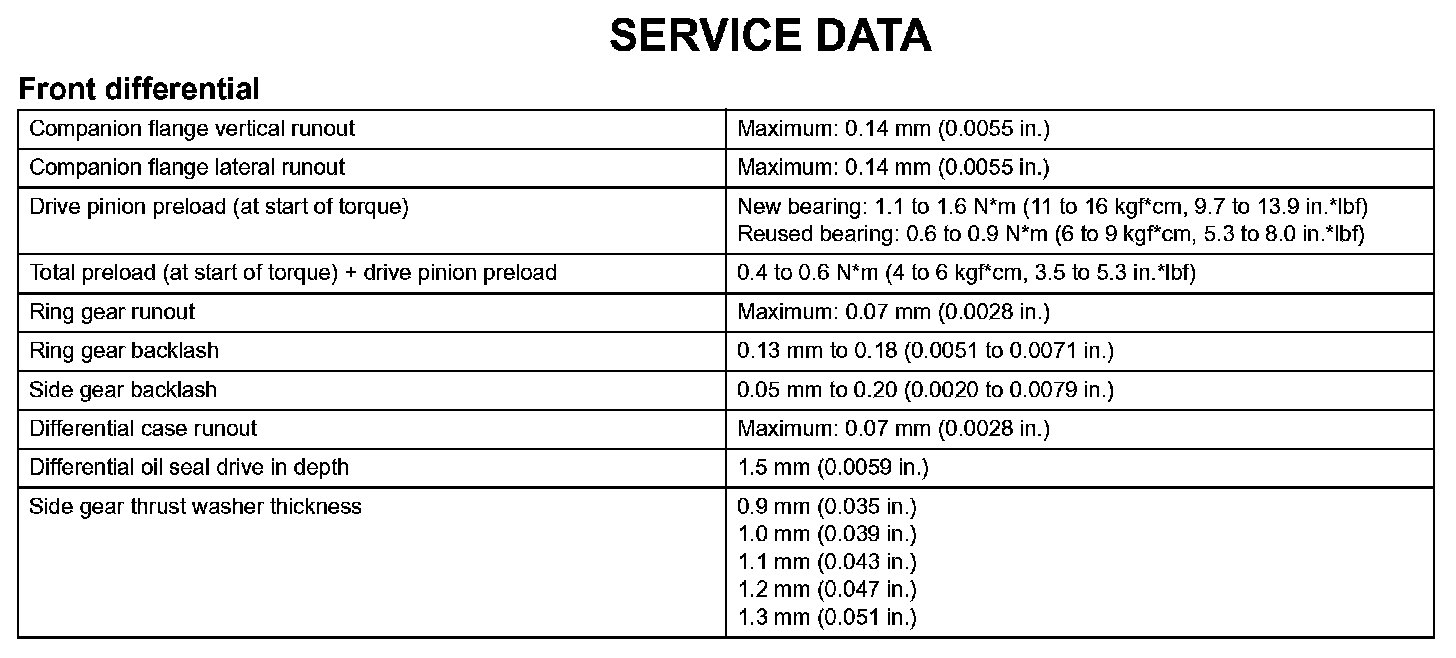

Differential - Service Data (Part 1):
Differential - Service Data (Part 2):
Differential - Service Data (Part 3):
