Torque Specifications

SPECIFICATIONS: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

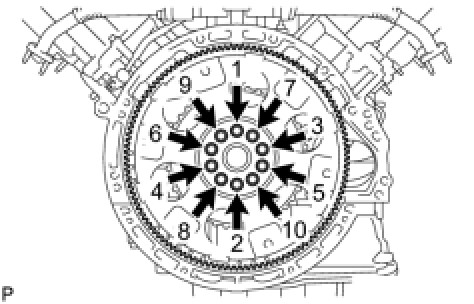

Flexplate Bolts
Do not reuse the bolts





First pass 30 Nm (301 kgf-cm, 22 ft-lbf) in sequence
Final pass Tighten bolts 90°
