Service Data








SPECIFICATIONS: SUSPENSION CONTROL: SERVICE DATA

SERVICE DATA

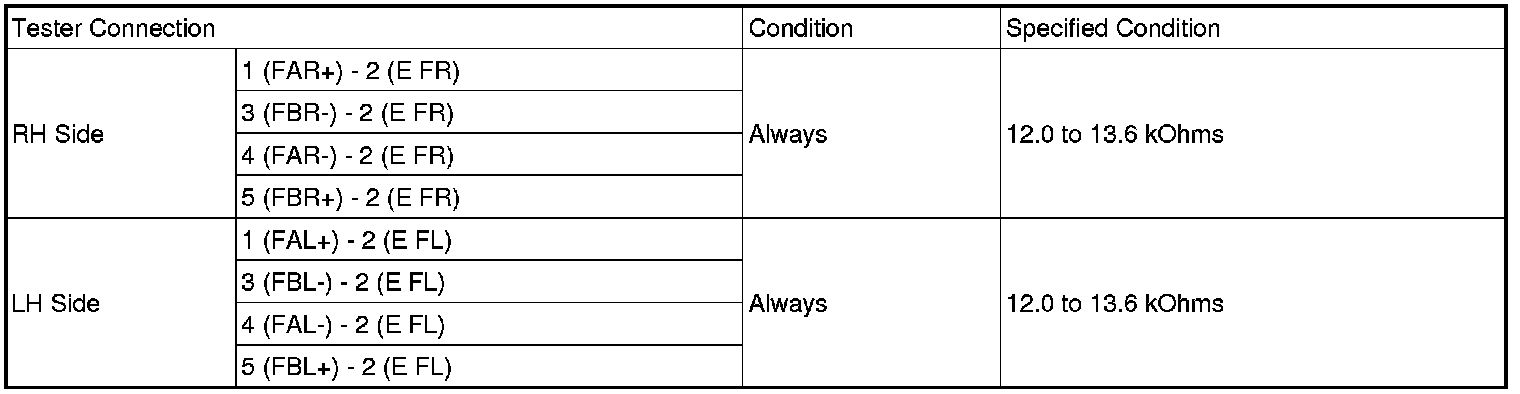

Damping Force Control Actuator for Front side

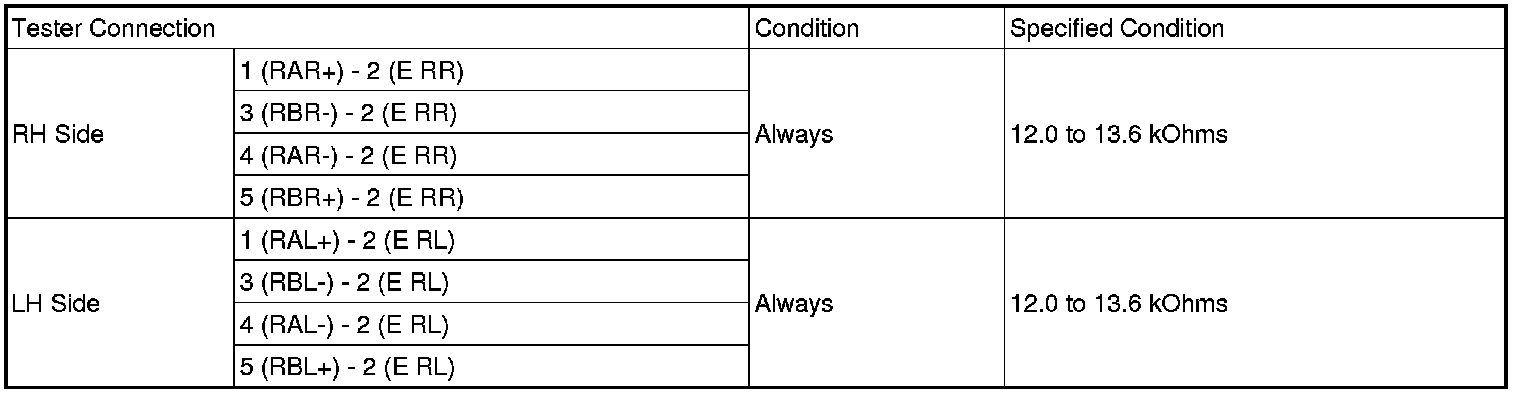

Damping Force Control Actuator for Rear side
