Installation

AIR CONDITIONING: AIR OUTLET REGISTER: INSTALLATION

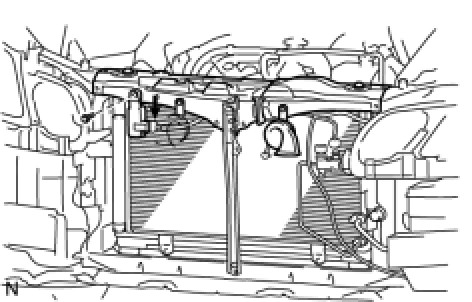

1. INSTALL SMOG VENTILATION SENSOR






(a) Install the sensor with the bolt and connect the connector.
2. INSTALL FRONT BUMPER COVER Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
