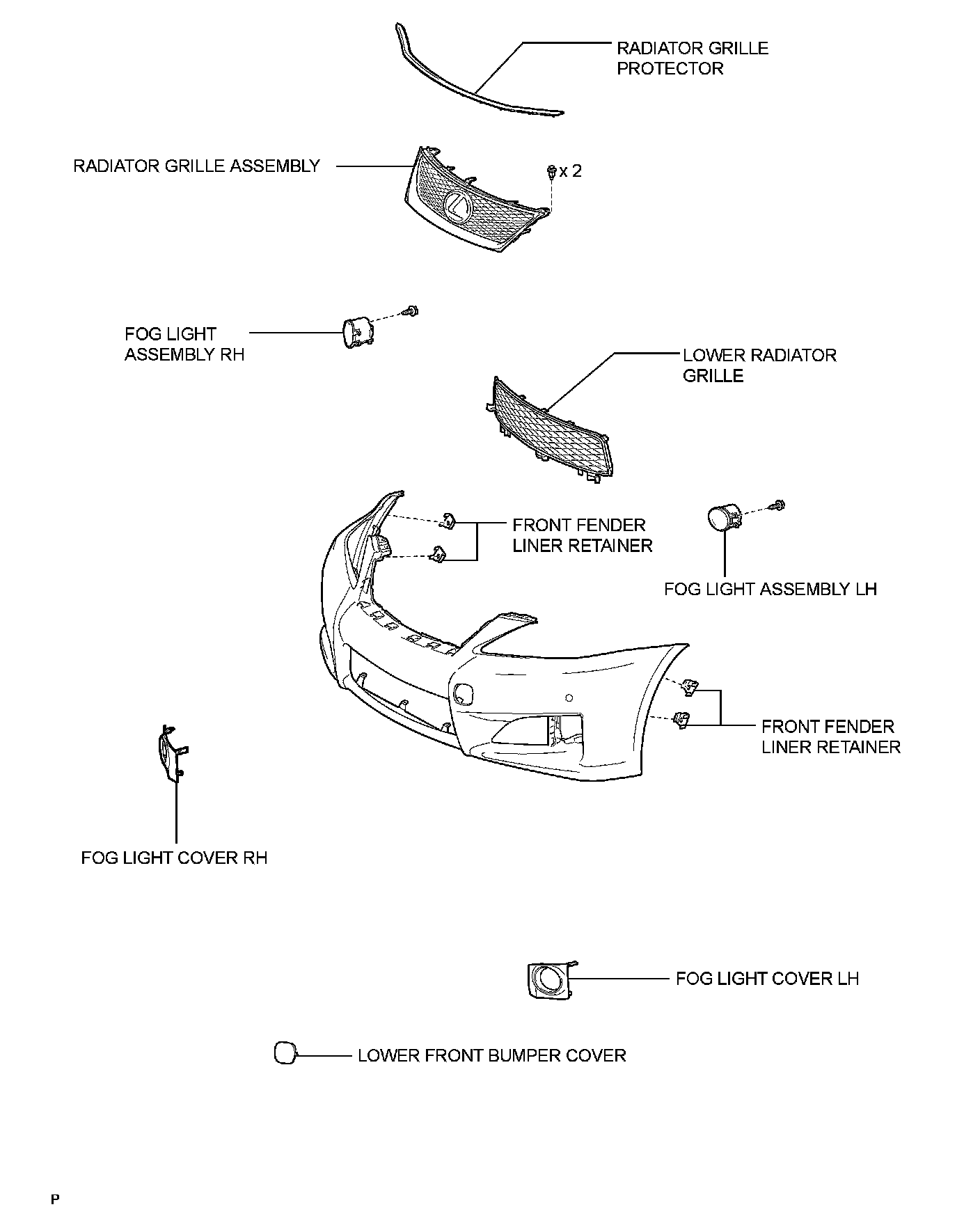

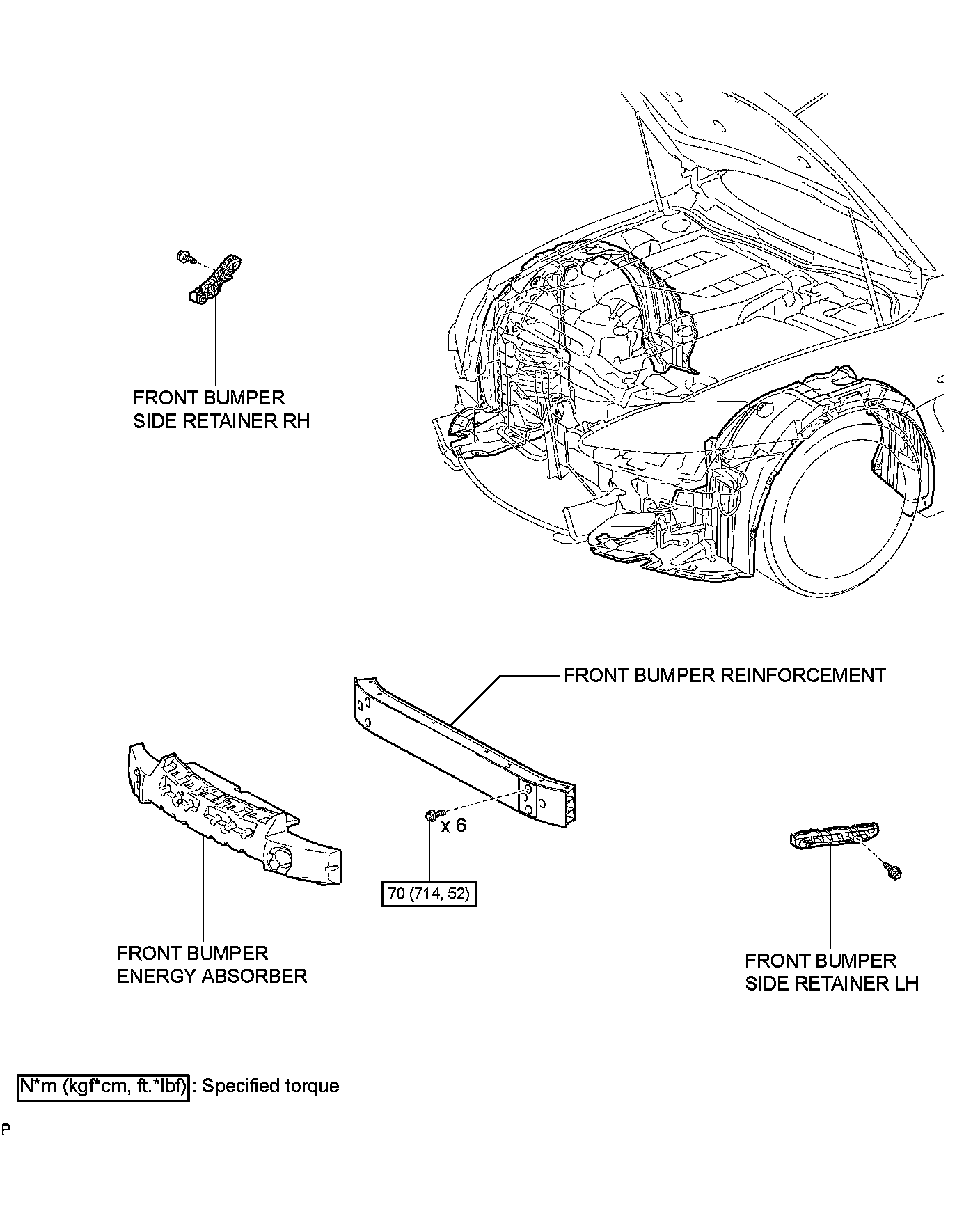

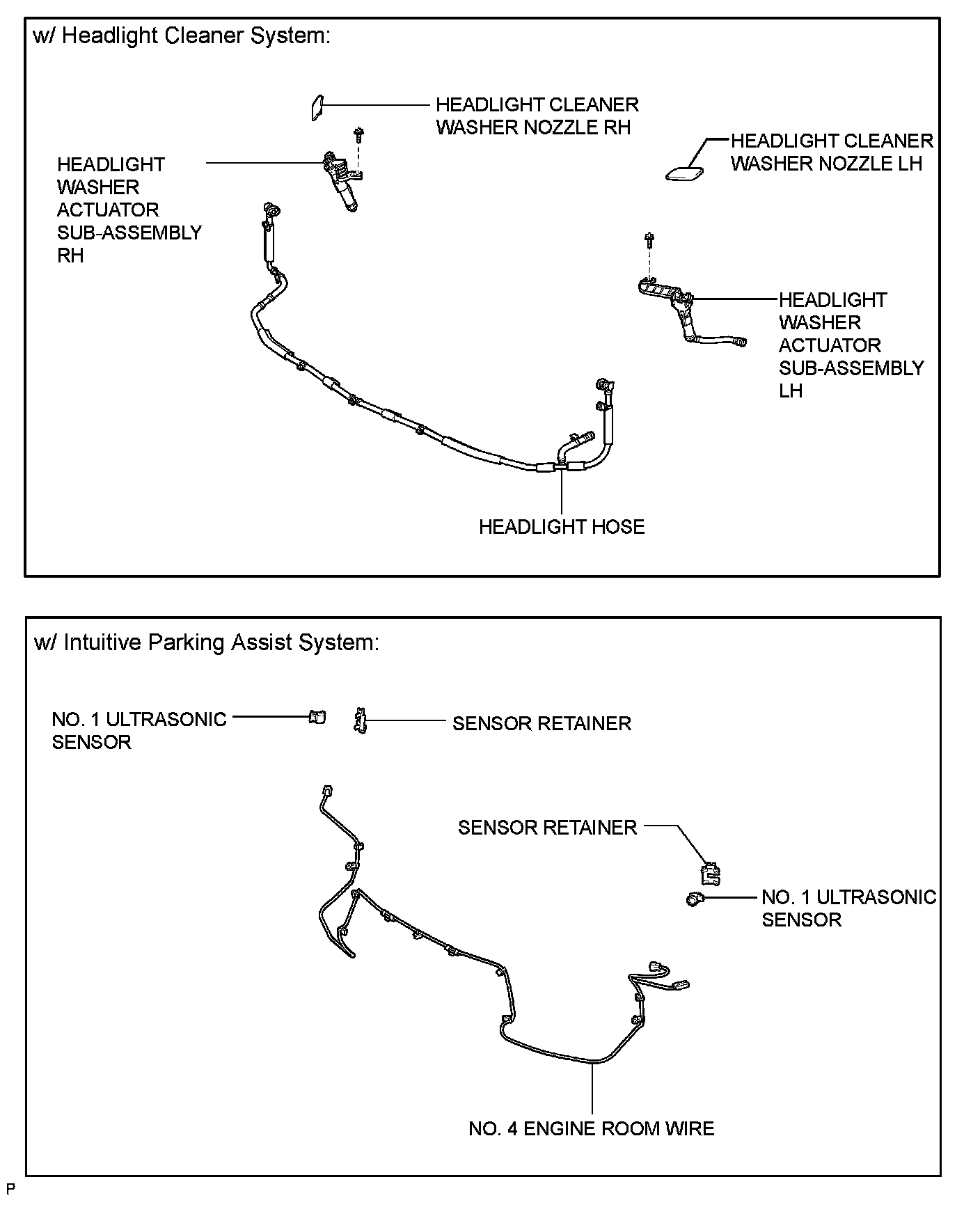

EXTERIOR PANELS / TRIM: FRONT
BUMPER
: COMPONENTS
EXTERIOR PANELS / TRIM: FRONT
BUMPER
: COMPONENTS
ILLUSTRATION
