Components

FRONT SUSPENSION: FRONT SUSPENSION MEMBER: COMPONENTS

FRONT SUSPENSION: FRONT SUSPENSION MEMBER: COMPONENTS

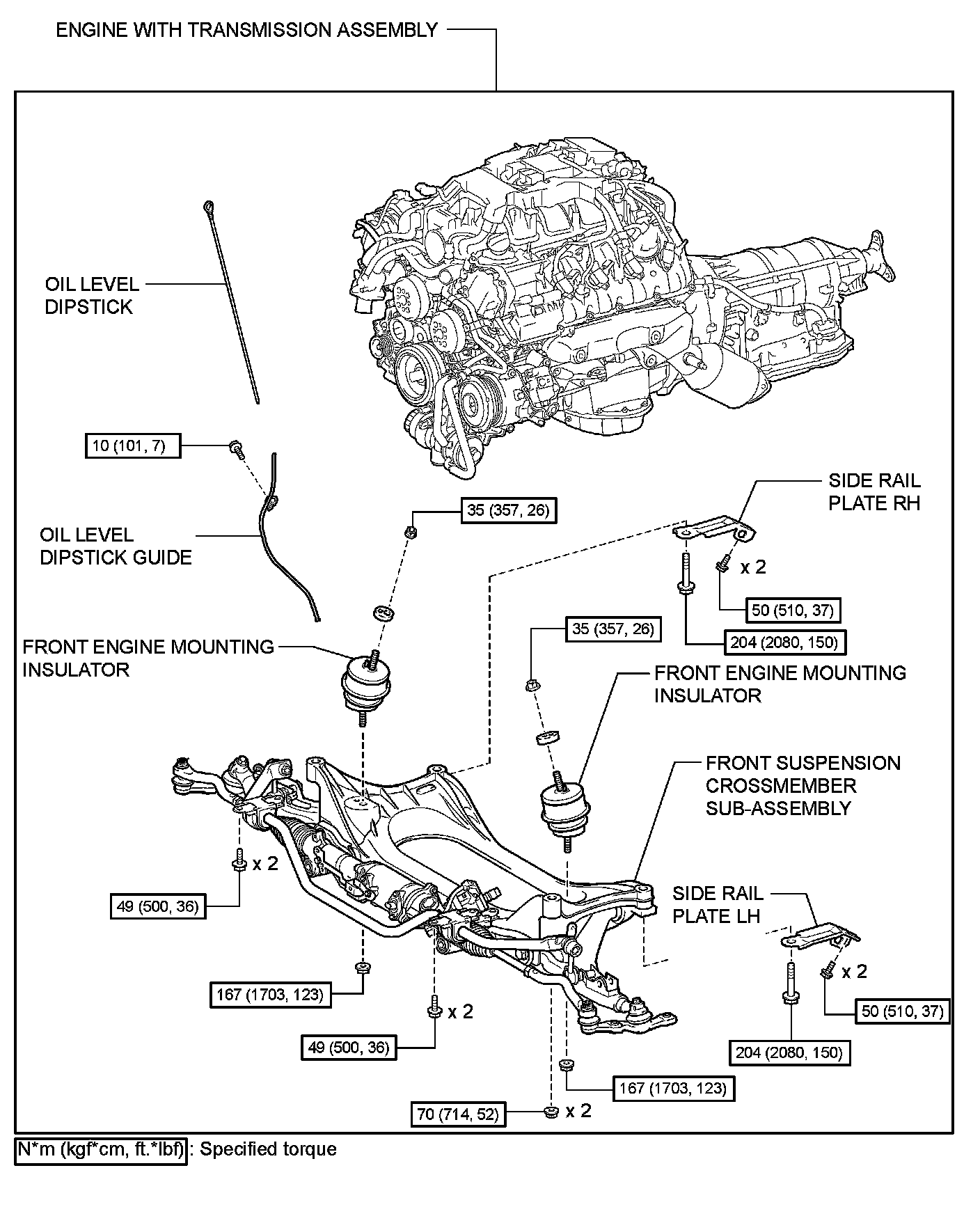

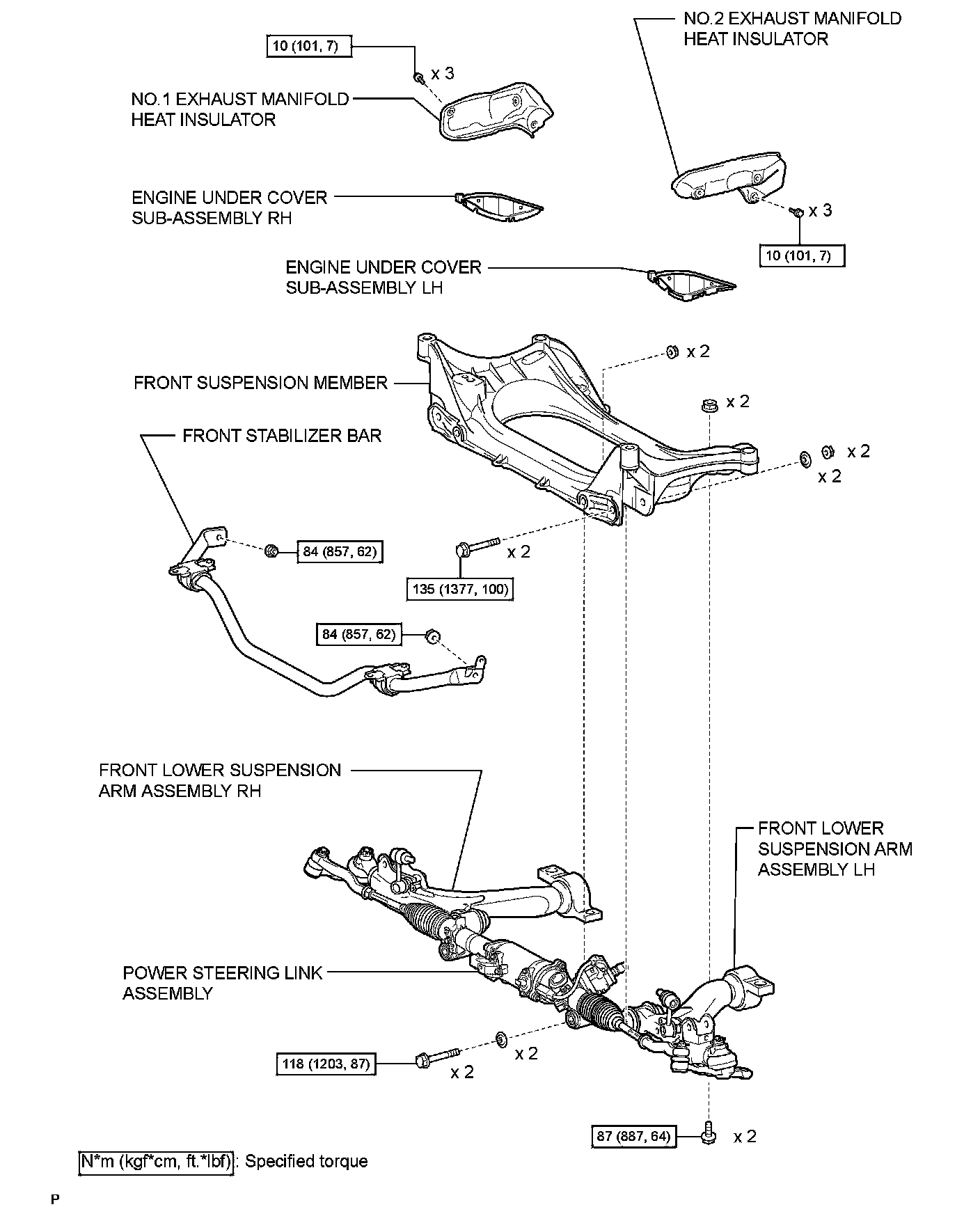

ILLUSTRATION
