Components

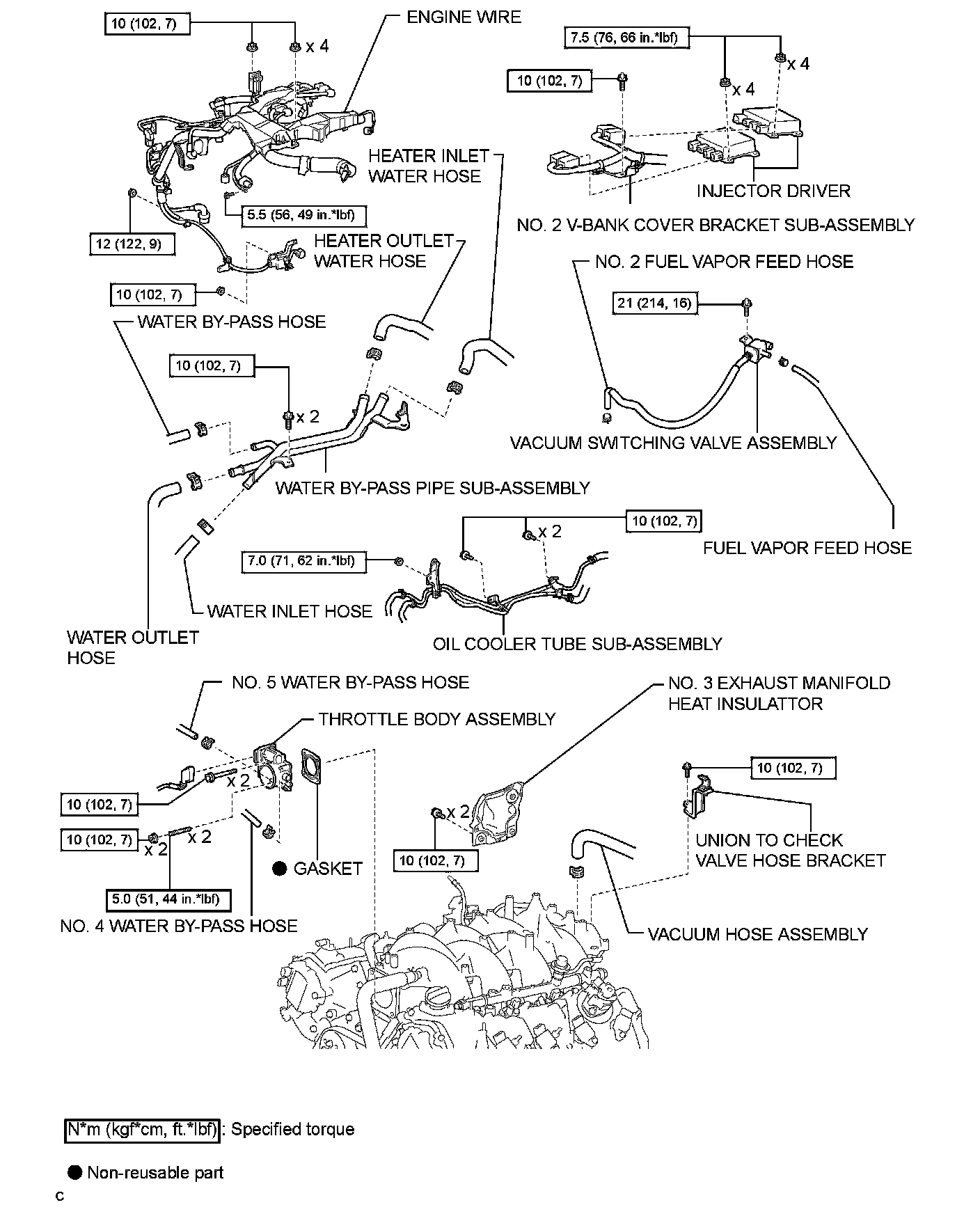

2UR-GSE INTAKE / EXHAUST: INTAKE MANIFOLD: COMPONENTS

2UR-GSE INTAKE / EXHAUST: INTAKE MANIFOLD: COMPONENTS

ILLUSTRATION
