Components

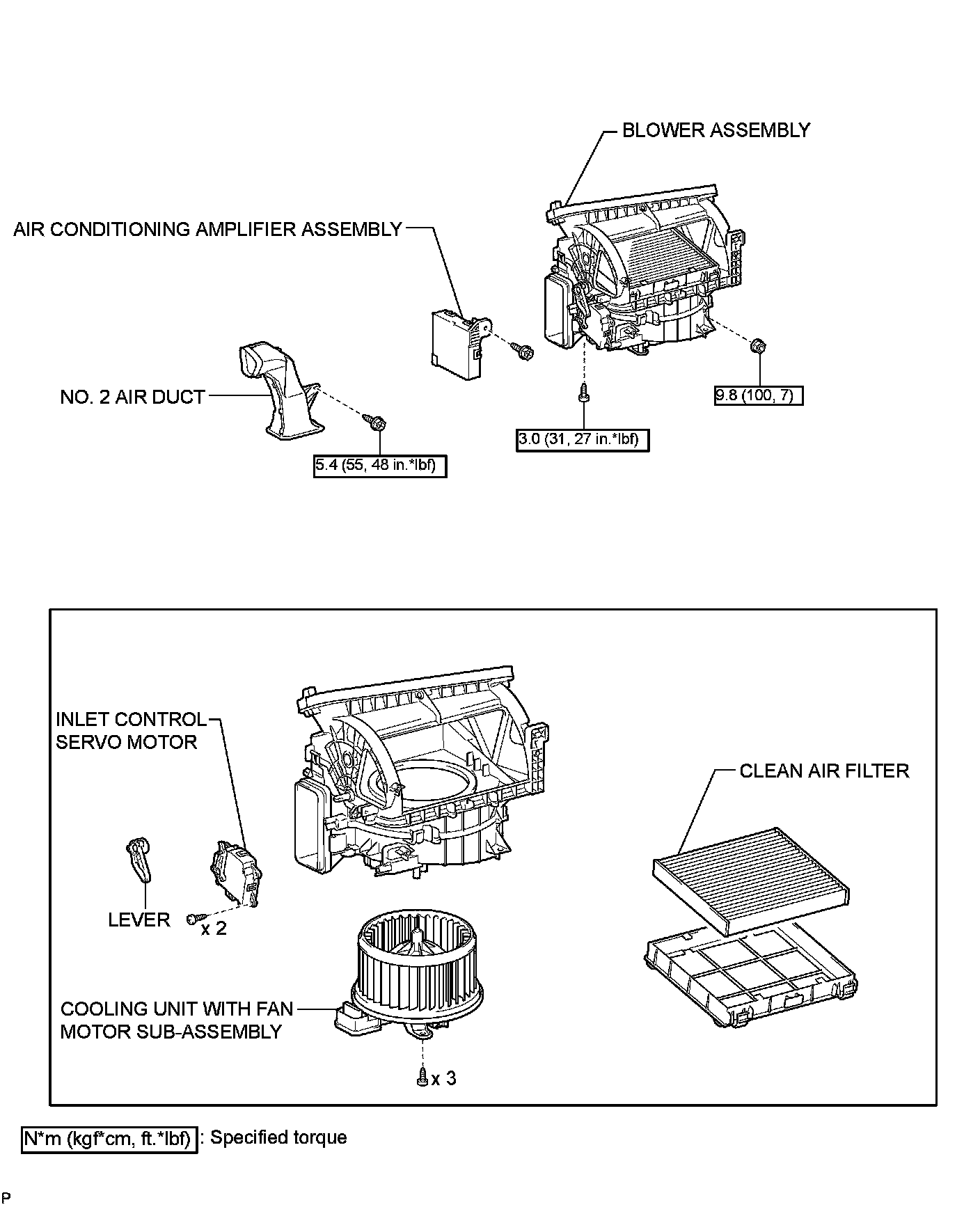

HEATING / AIR CONDITIONING: BLOWER UNIT: COMPONENTS

HEATING / AIR CONDITIONING: BLOWER UNIT: COMPONENTS

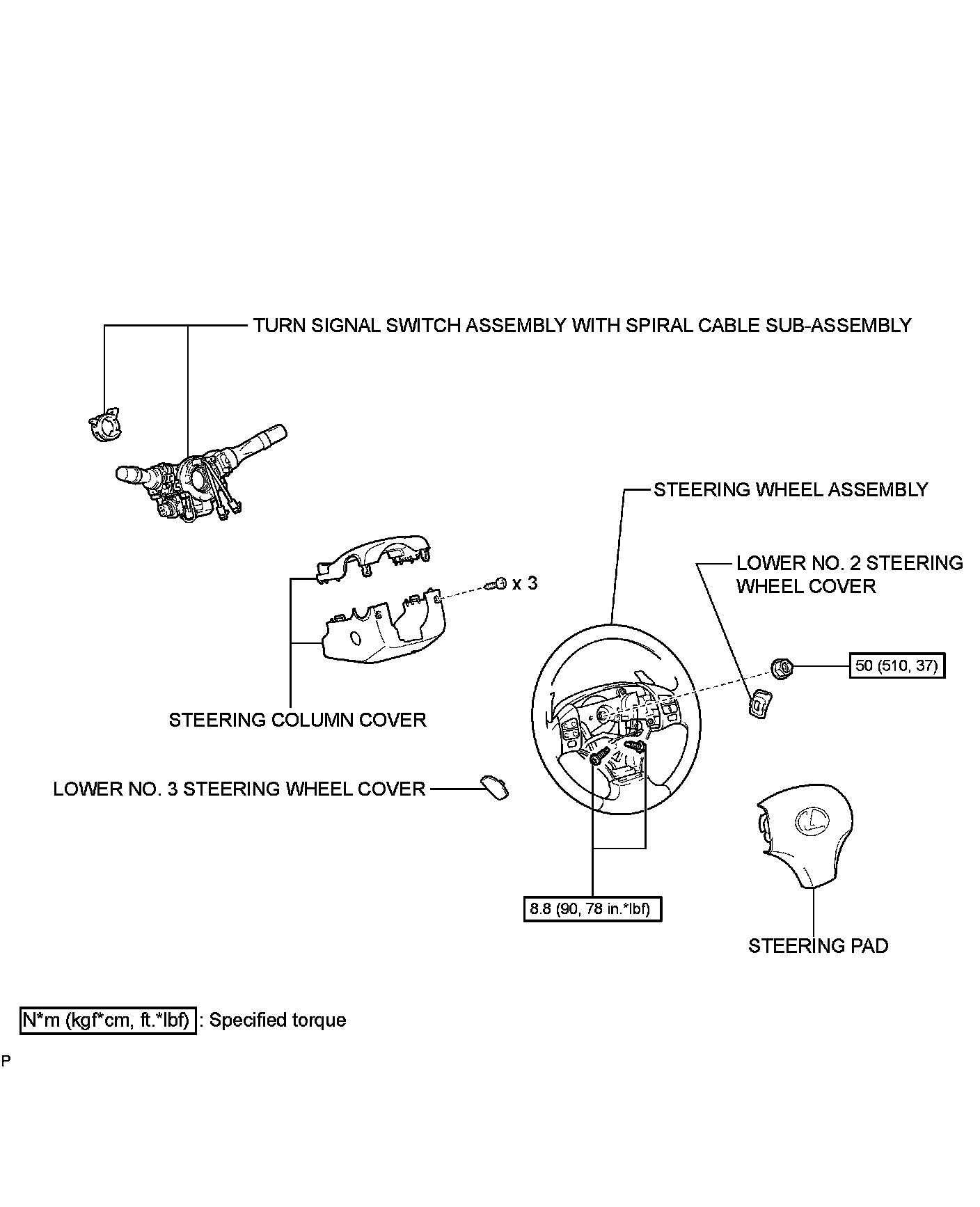

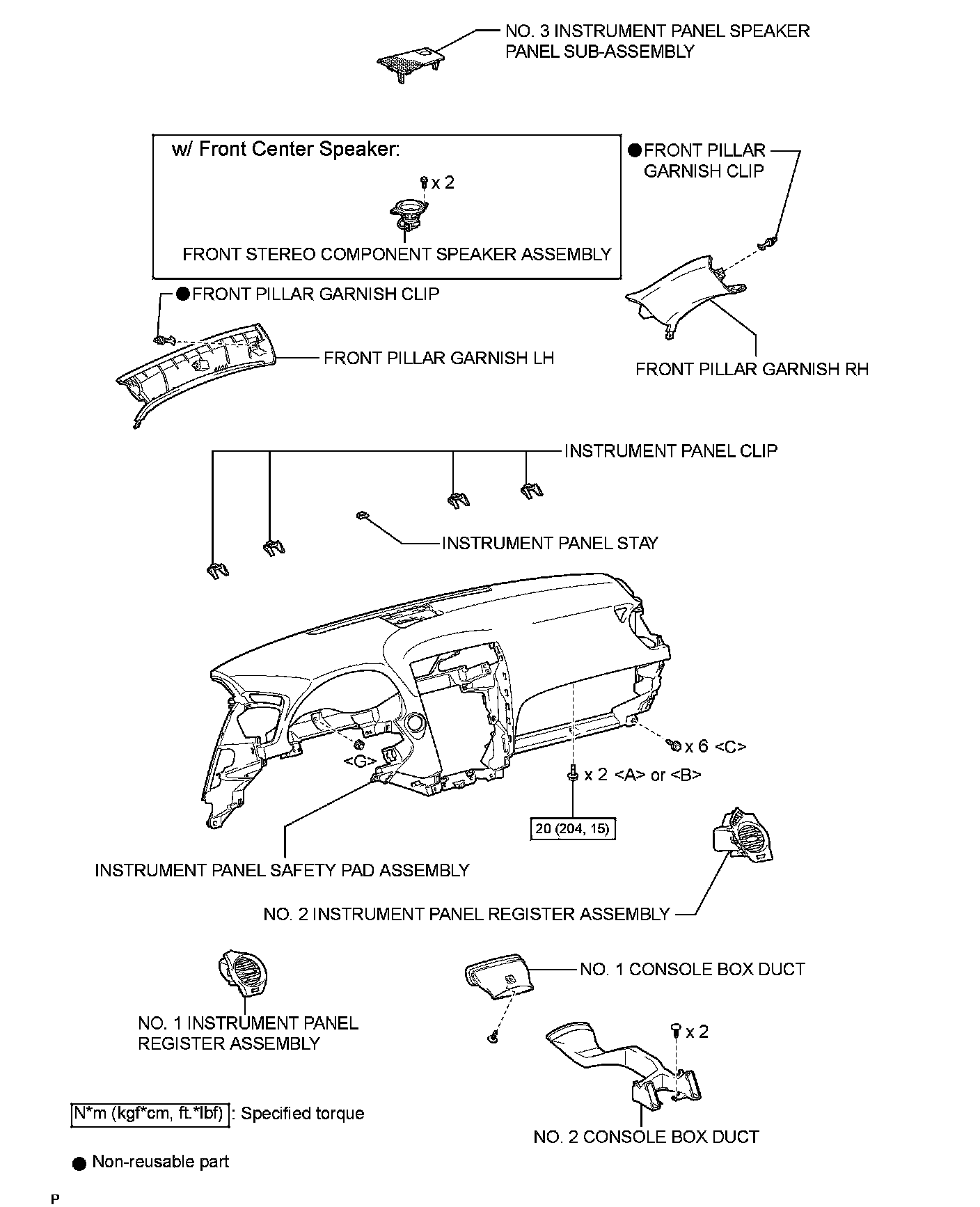

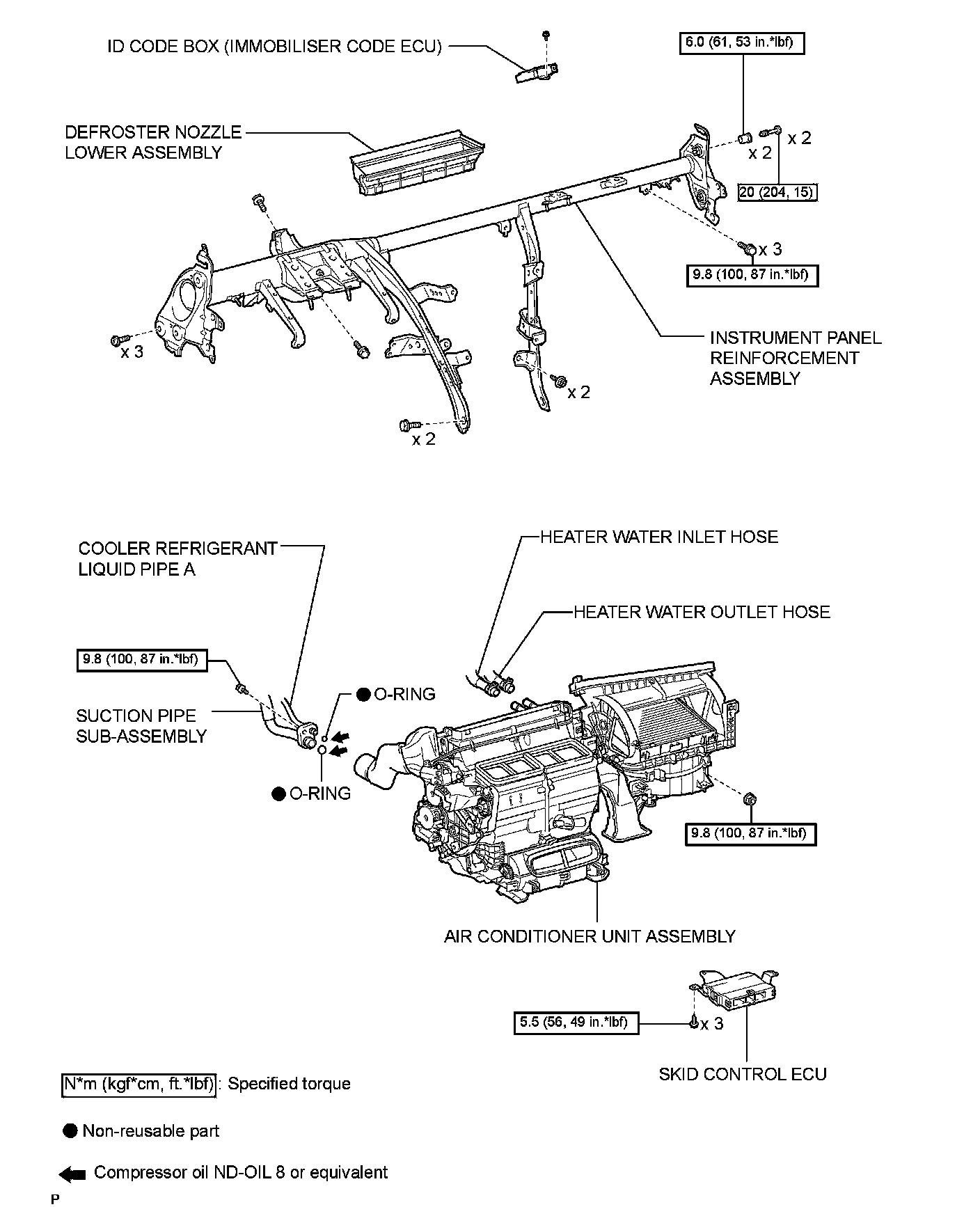

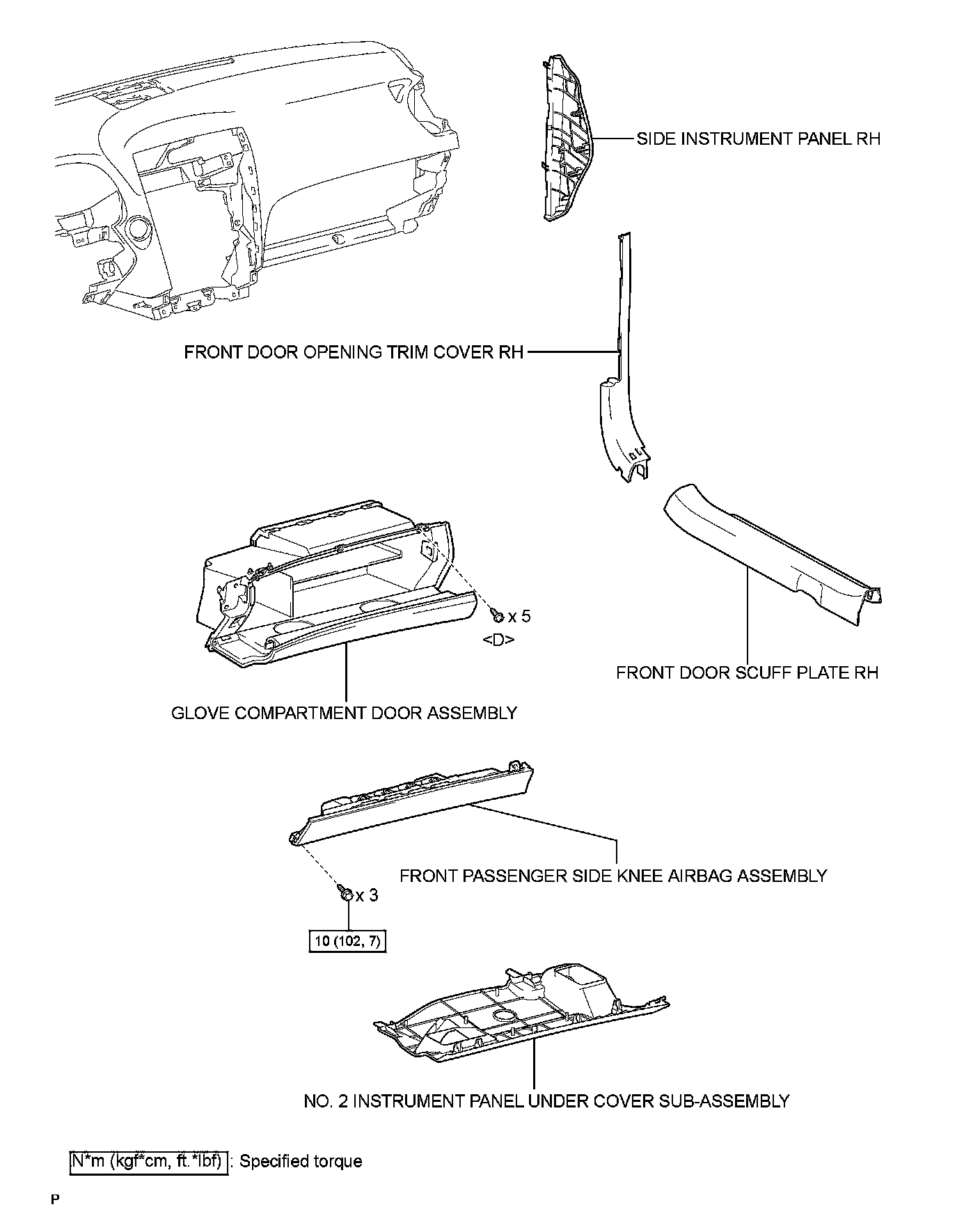

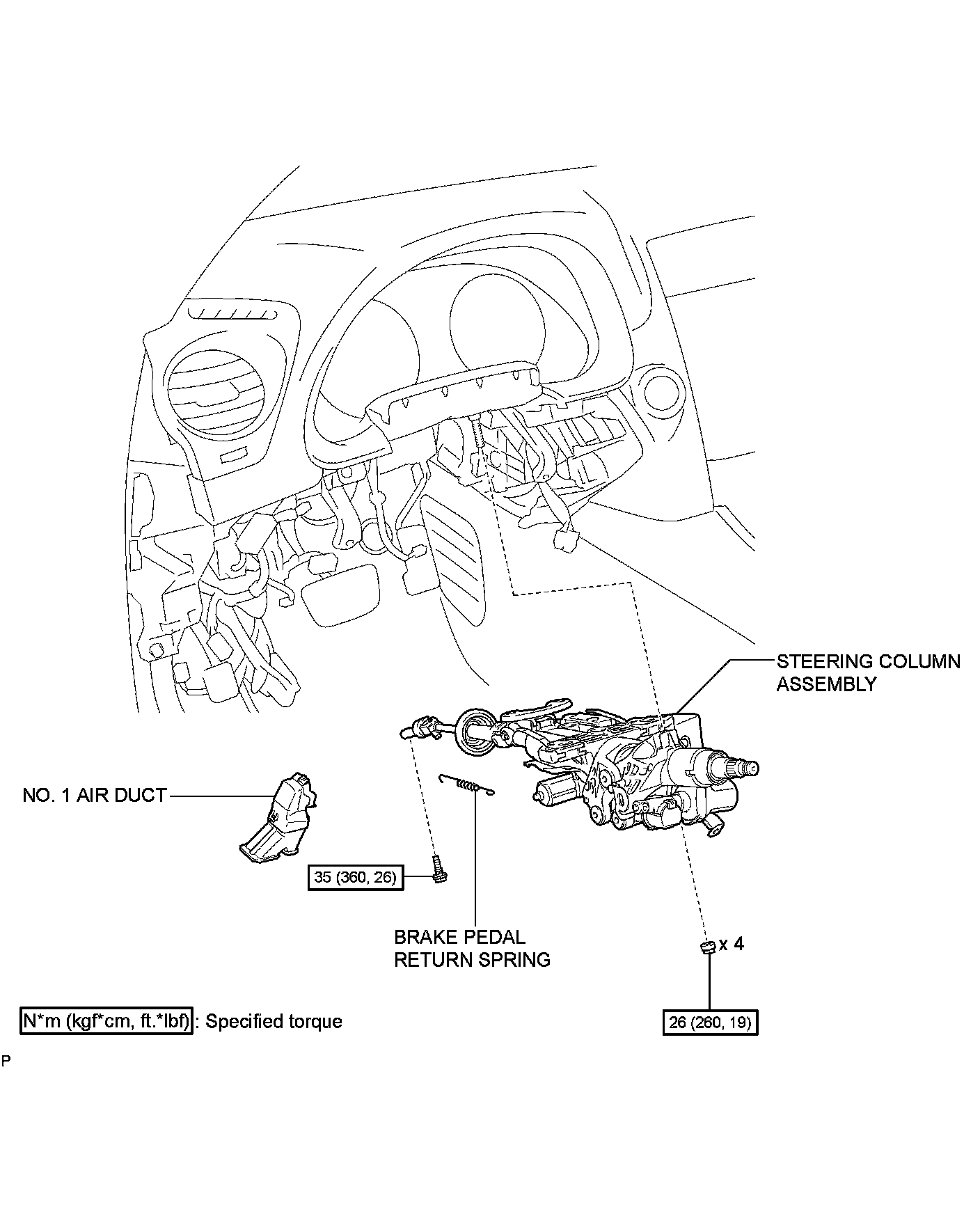

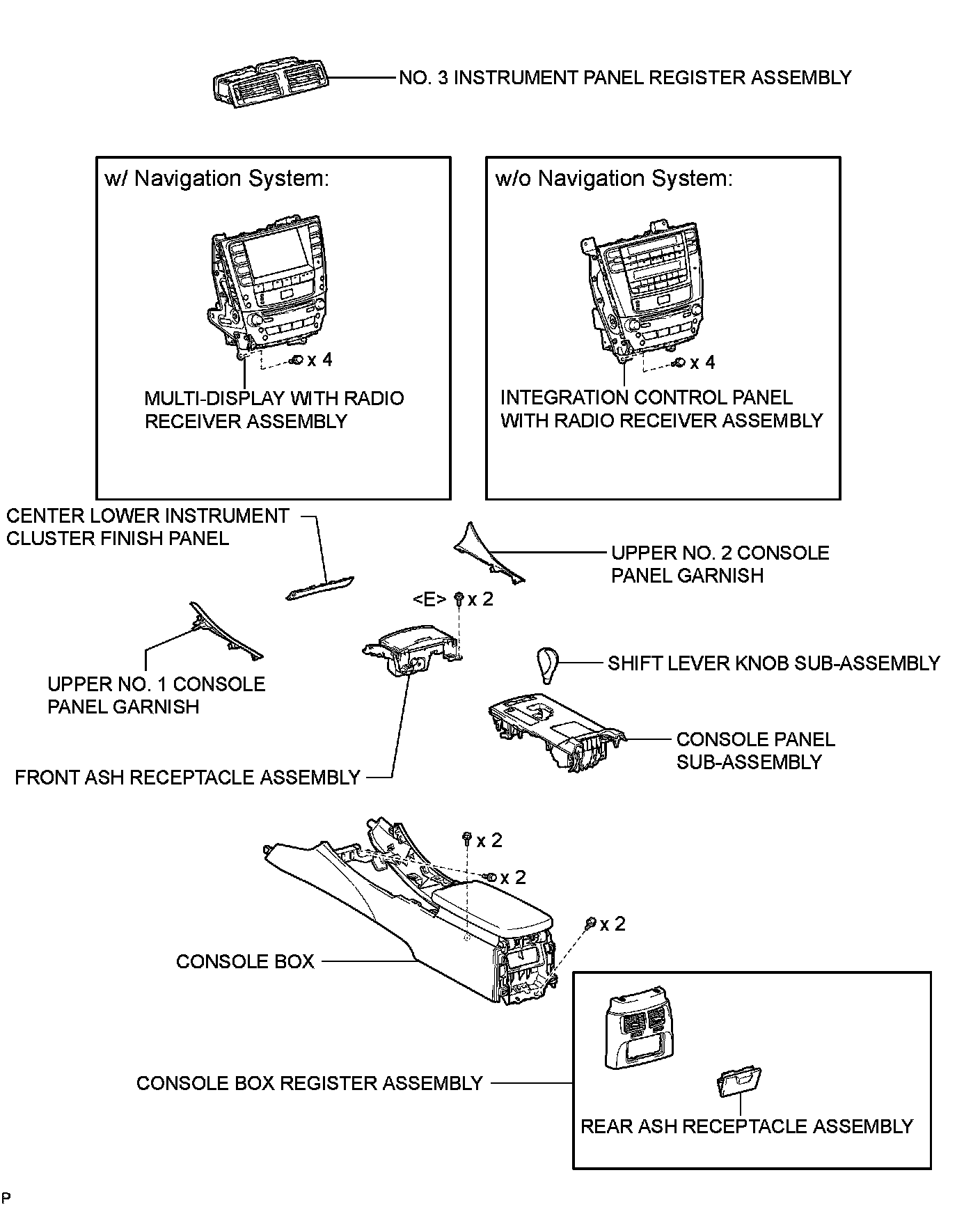

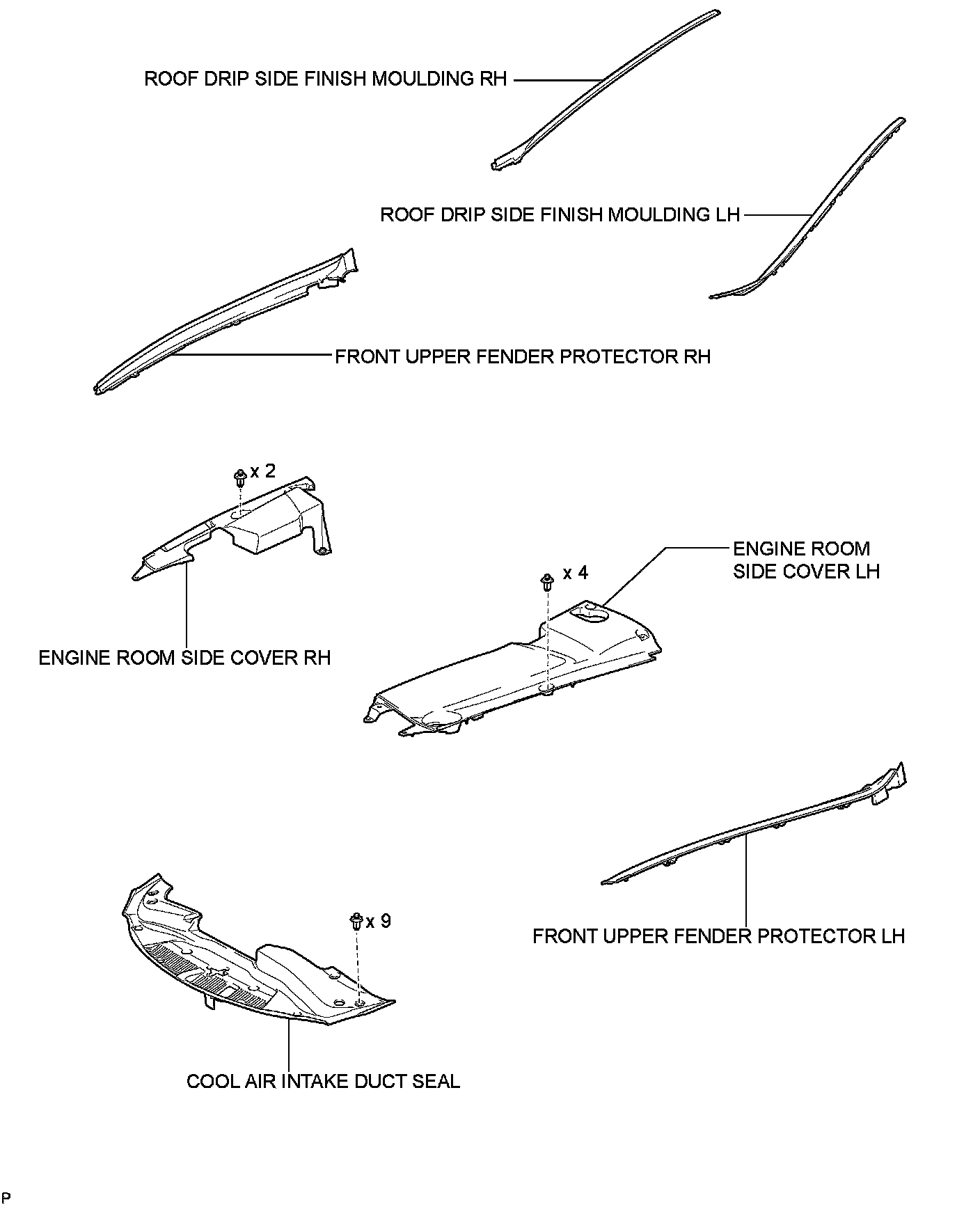

ILLUSTRATION
