HEATING / AIR CONDITIONING: COMPRESSOR: COMPONENTS
HEATING / AIR CONDITIONING: COMPRESSOR: COMPONENTS

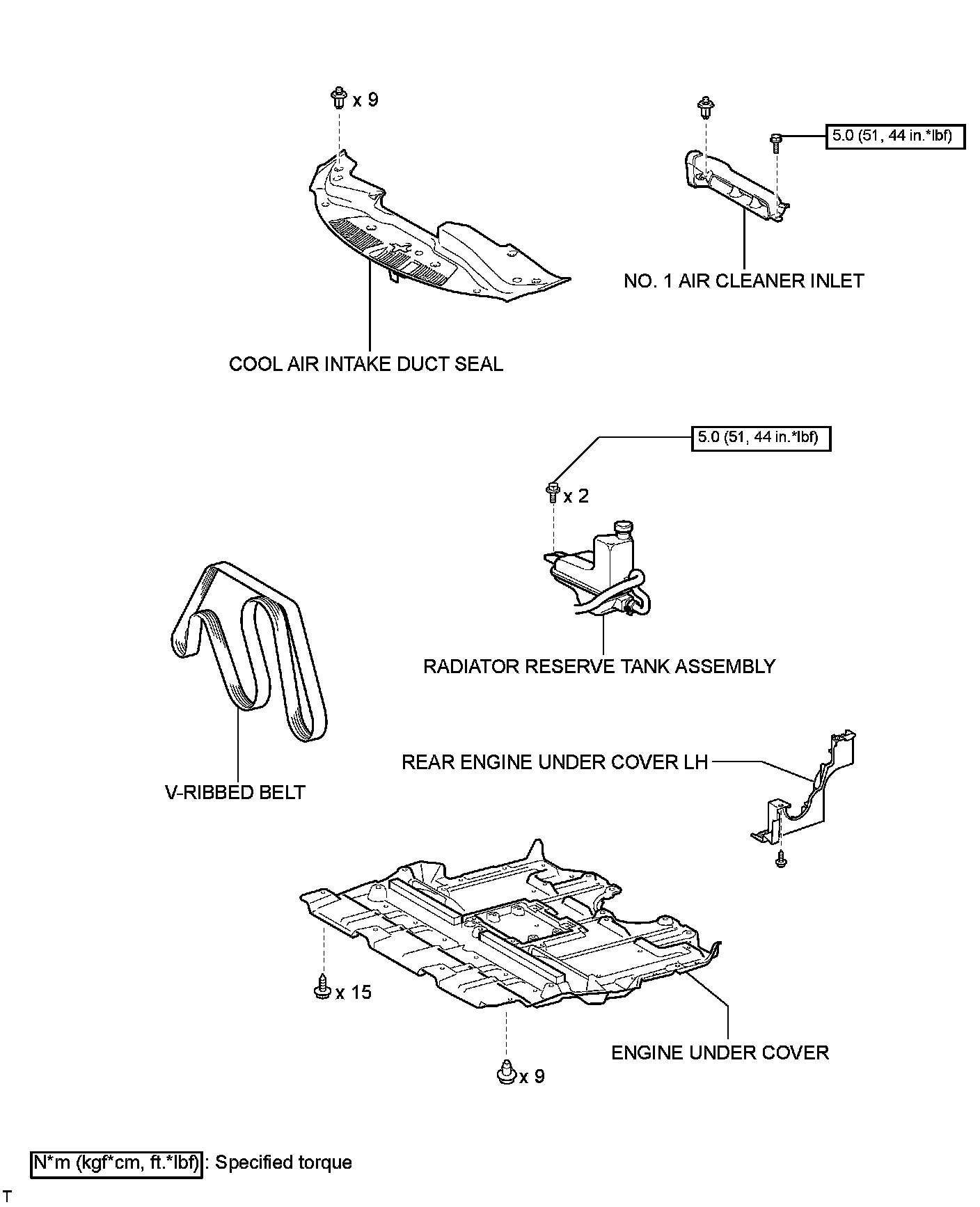

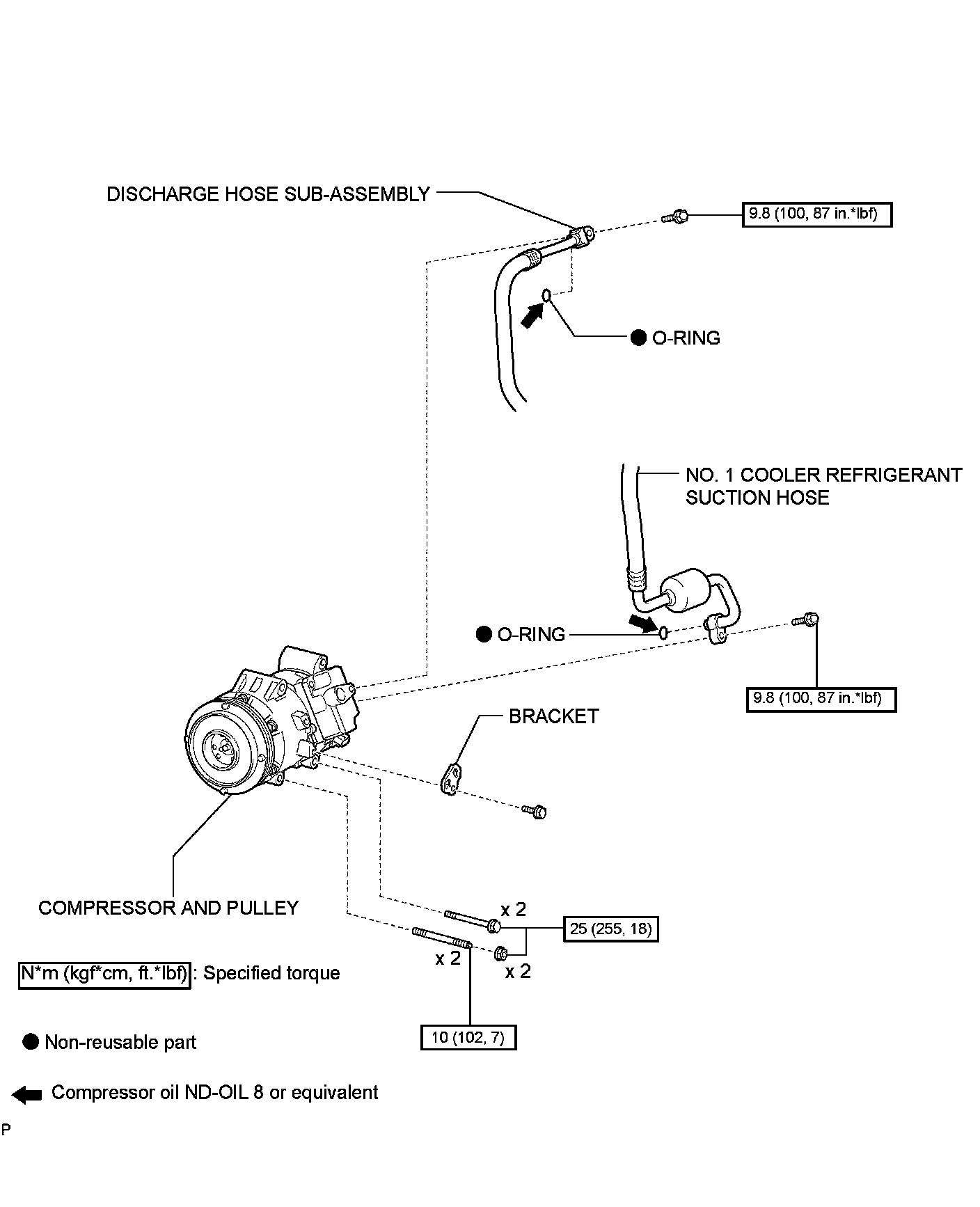

ILLUSTRATION
