HEATING / AIR CONDITIONING: CONDENSER: COMPONENTS
HEATING / AIR CONDITIONING: CONDENSER: COMPONENTS

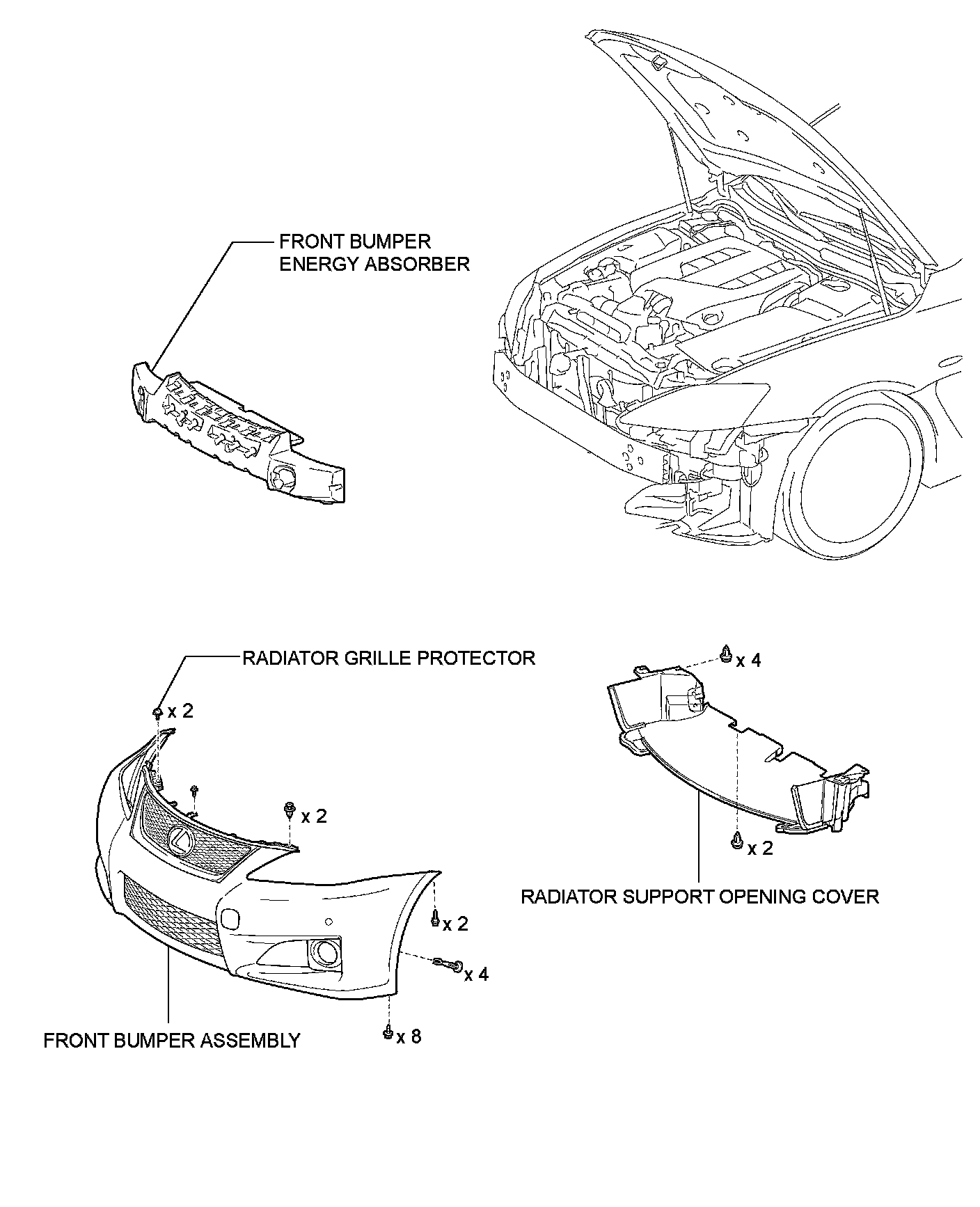

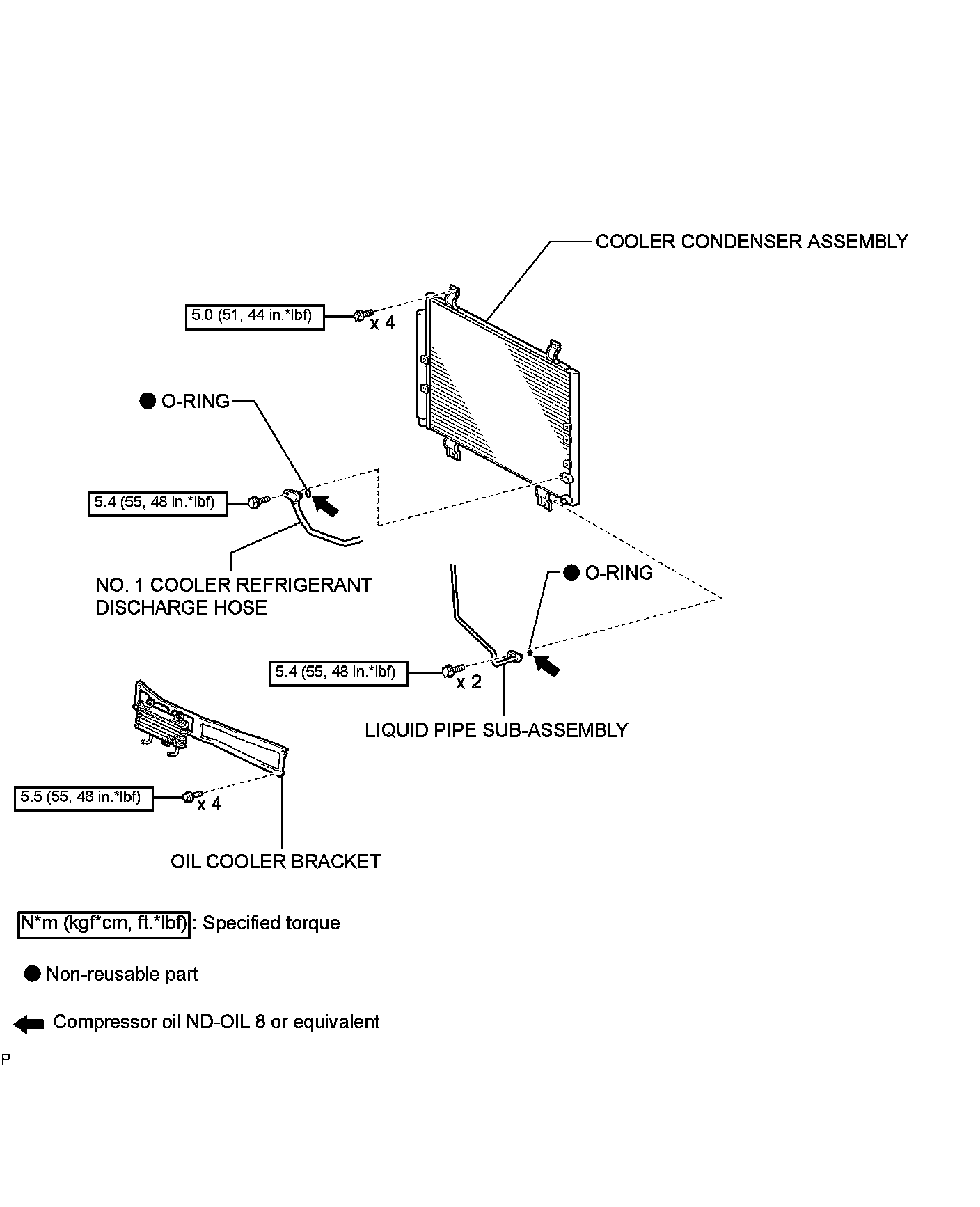

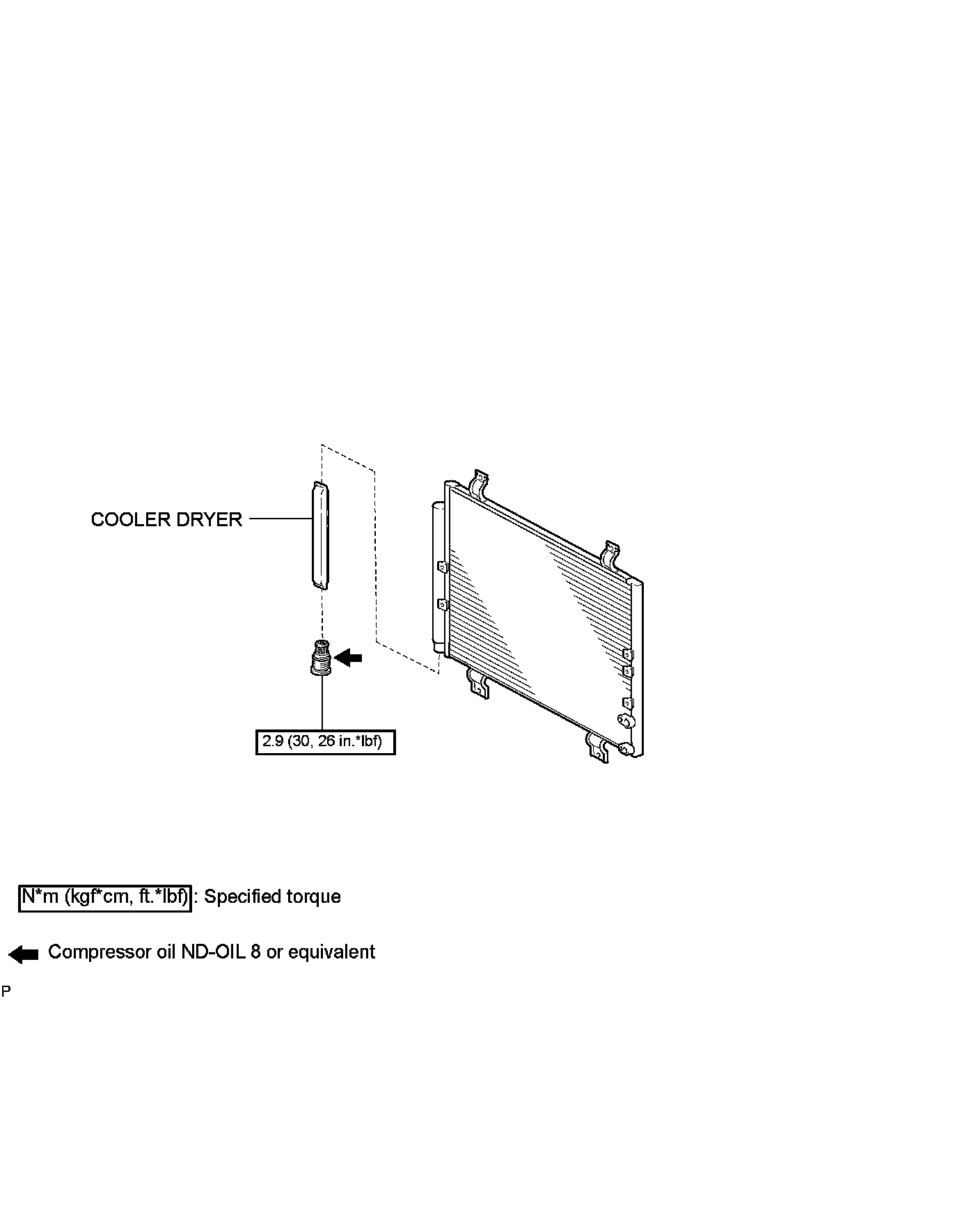

ILLUSTRATION
