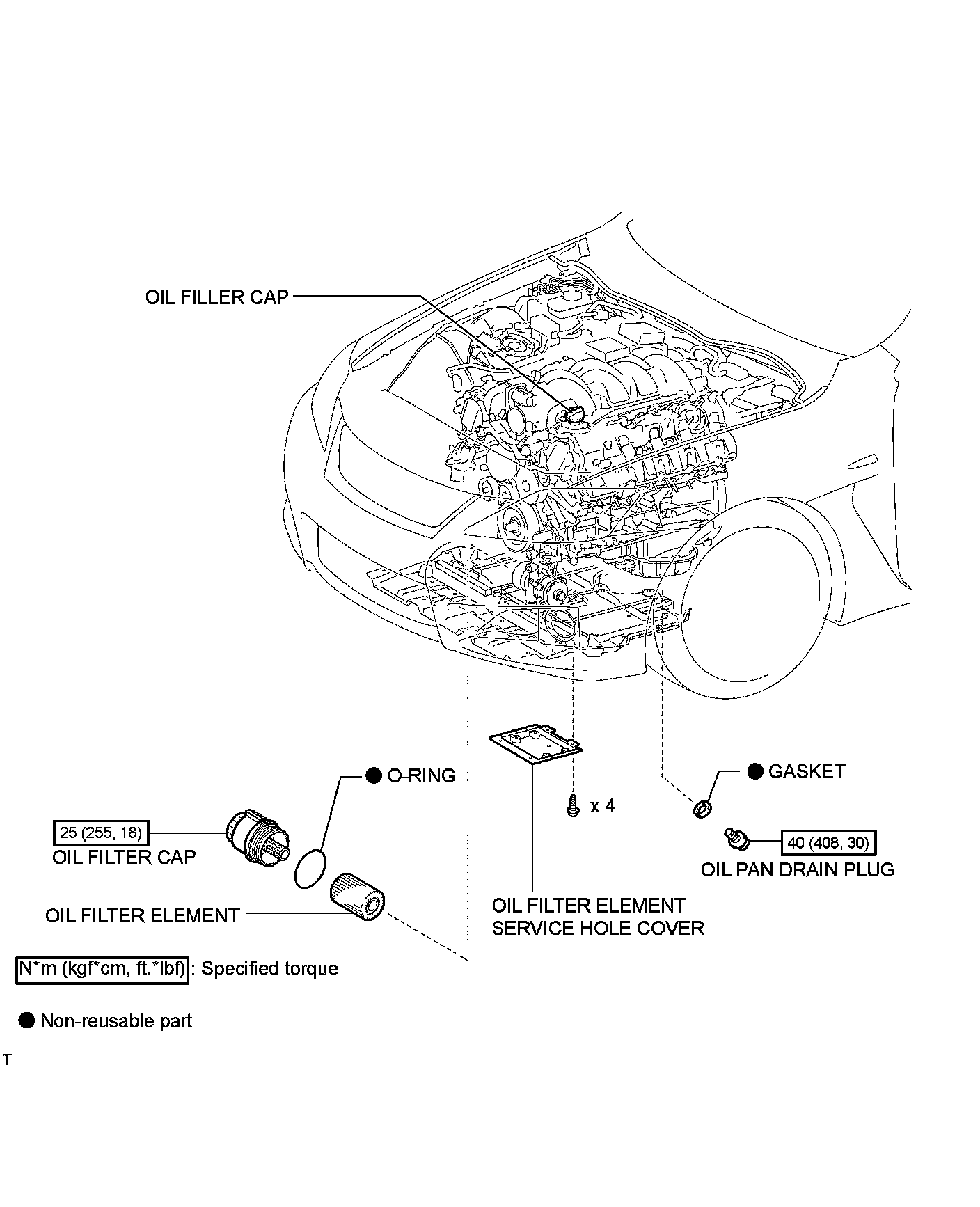

2UR-GSE LUBRICATION: OIL AND
OIL FILTER
: COMPONENTS
2UR-GSE LUBRICATION: OIL AND
OIL FILTER
: COMPONENTS
ILLUSTRATION
