Piston Ring, Engine

RING GROOVE CLEARANCE

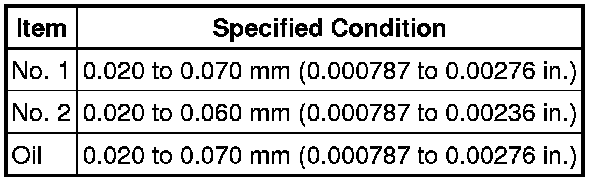

Standard Ring Groove Clearance:





PISTON RING END GAP

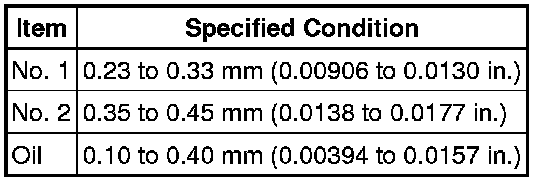

Standard End Gap:

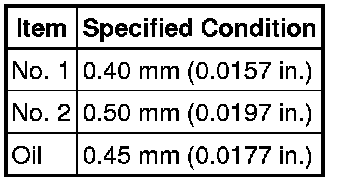

Maximum End Gap:
